AS196-307LF

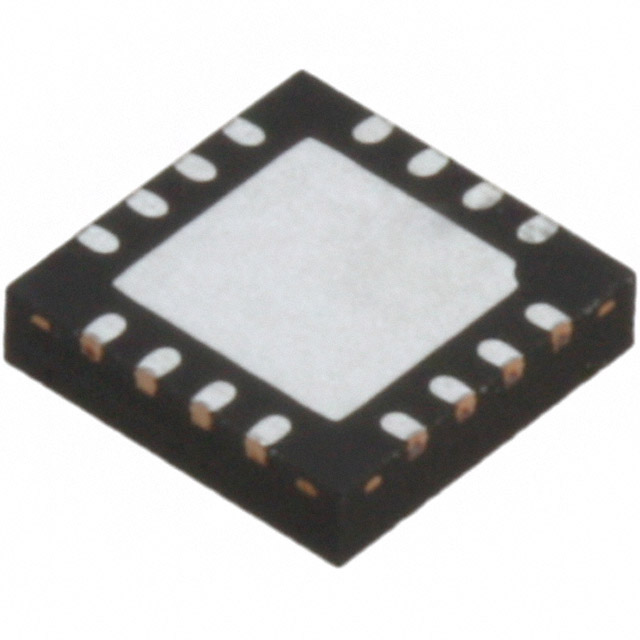

IC RF SWITCH SPDT 6GHZ 16LPCCManufacturer: Skyworks Solutions Inc.
Categories: RF Switches
Quality Control: Learn More
Skyworks Solutions Inc. AS196-307LF is a Single Pole Double Throw (SPDT) RF switch designed for high-performance applications. With a broad frequency range from 300kHz to 6GHz, this component is optimized for operation in cellular, ISM, and PCS bands, supporting technologies such as GSM and WCDMA. It features a 50 Ohm impedance and an absorptive topology, delivering an insertion loss of 1.6dB at 6GHz and 30dB isolation. Key performance metrics include an IIP3 of 46dBm and a P1dB of 27dBm. The AS196-307LF operates over an extended temperature range of -40°C to 85°C and is supplied in a compact 16-LPCC (4x4) package suitable for surface mounting. This device is commonly utilized in wireless infrastructure, mobile devices, and other RF communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | GSM, ISM, PCS, WCDMA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.6V ~ 5V |
| Insertion Loss | 1.6dB |
| Frequency Range | 300kHz ~ 6GHz |
| Topology | Absorptive |
| P1dB | 27dBm |
| Test Frequency | 6GHz |
| Isolation | 30dB |
| Supplier Device Package | 16-LPCC (4x4) |
| IIP3 | 46dBm |
