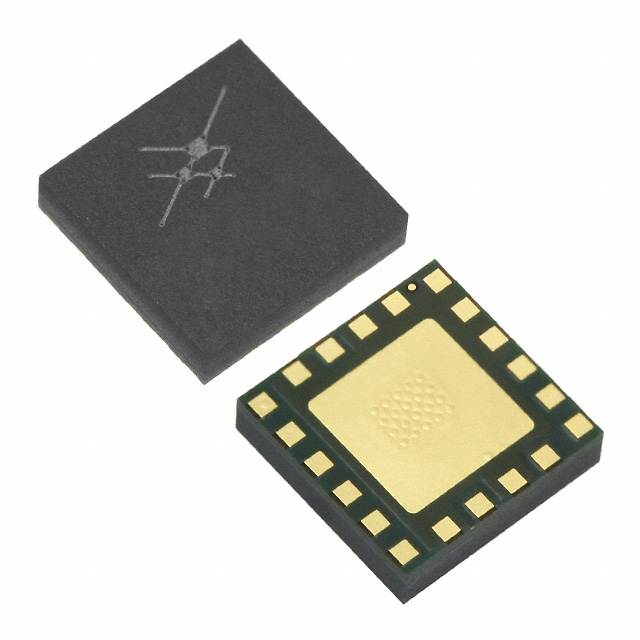

SKY73077-459LF
IC MIXER 1500-2700MHZManufacturer: Skyworks Solutions Inc.
Categories: RF Mixers
Quality Control: Learn More
The Skyworks Solutions Inc. SKY73077-459LF is a high-performance RF mixer IC designed for operation across the 1.5GHz to 2.7GHz frequency range. This component is engineered for demanding wireless applications, supporting standards such as CDMA, GSM, and WCDMA. Featuring a dual-mixer architecture, the SKY73077-459LF is housed in a compact 24-QFN (4x4) package with an exposed pad for superior thermal management. It operates within a voltage supply range of 4.75V to 5.25V and typically draws a supply current of 152mA. The surface mount configuration and tape and reel packaging facilitate efficient automated assembly processes. This device is suitable for integration into advanced mobile communication systems and other high-frequency wireless infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1.5GHz ~ 2.7GHz |
| RF Type | CDMA, GSM, WCDMA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | - |
| Current - Supply | 152mA |
| Secondary Attributes | - |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | 24-QFN (4x4) |
