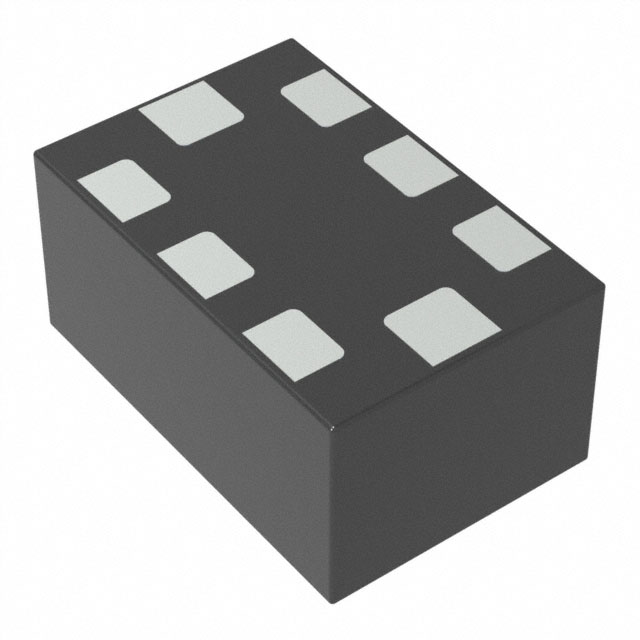

PS214-315
IC PHASE SHIFTER 1700-2800MHZ LGManufacturer: Skyworks Solutions Inc.
Categories: RF Misc ICs and Modules
Quality Control: Learn More
Skyworks Solutions Inc.'s PS214-315 is a general-purpose RF IC phase shifter operating within the 1.7GHz to 2.8GHz frequency range. This component offers a precise 100° phase shift capability, crucial for advanced RF signal manipulation in demanding applications. Designed for surface mounting, it utilizes an 8-LGA package with dimensions of 4.9x3.2mm, ensuring a compact footprint for high-density circuit designs. The PS214-315 is commonly employed in wireless infrastructure, satellite communications, and radar systems where accurate phase control is paramount. Supplied in tape and reel packaging, this device integrates seamlessly into automated manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-LGA |
| Mounting Type | Surface Mount |
| Function | Phase Shifter |
| Frequency | 1.7GHz ~ 2.8GHz |
| RF Type | General Purpose |
| Secondary Attributes | 100° Phase Shift |
| Supplier Device Package | 8-LGA (4.9x3.2) |
Request a Quote
