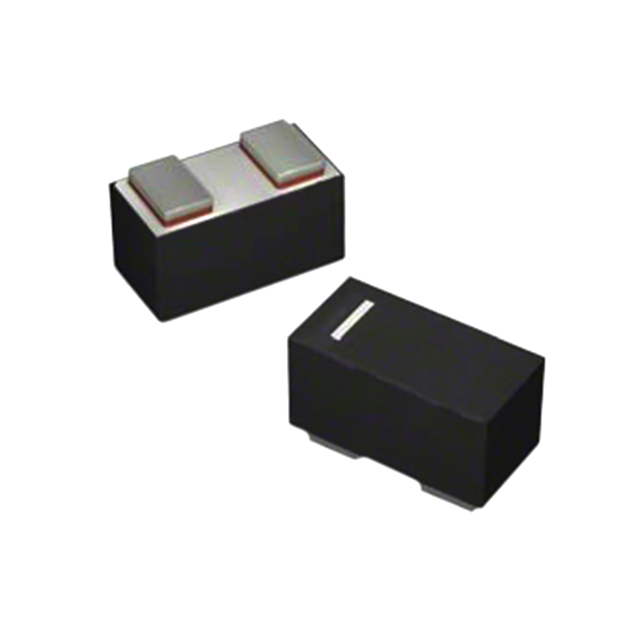

productimage

SMS7630-061

RF DIODE SCHOTTKY 1V 75MW 0201

Manufacturer: Skyworks Solutions Inc.

Categories: RF Diodes

Quality Control: Learn More

Skyworks Solutions Inc. SMS7630-061 is a single Schottky RF diode. This component features a maximum reverse voltage of 1V and a forward current rating of 50 mA. It offers a maximum power dissipation of 75 mW and is housed in a compact 0201 (0603 Metric) surface-mount package. The operating temperature range is from -65°C to 150°C. This device is commonly utilized in various RF applications across the telecommunications, consumer electronics, and industrial sectors, where efficient switching and low forward voltage drop are critical. The SMS7630-061 is supplied on tape and reel for automated assembly processes.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case0201 (0603 Metric)
Diode TypeSchottky - Single
Operating Temperature-65°C ~ 150°C (TA)
Capacitance @ Vr, F-
Resistance @ If, F-
Voltage - Peak Reverse (Max)1V
Supplier Device Package0201 (0603 Metric)
Current - Max50 mA
Power Dissipation (Max)75 mW
