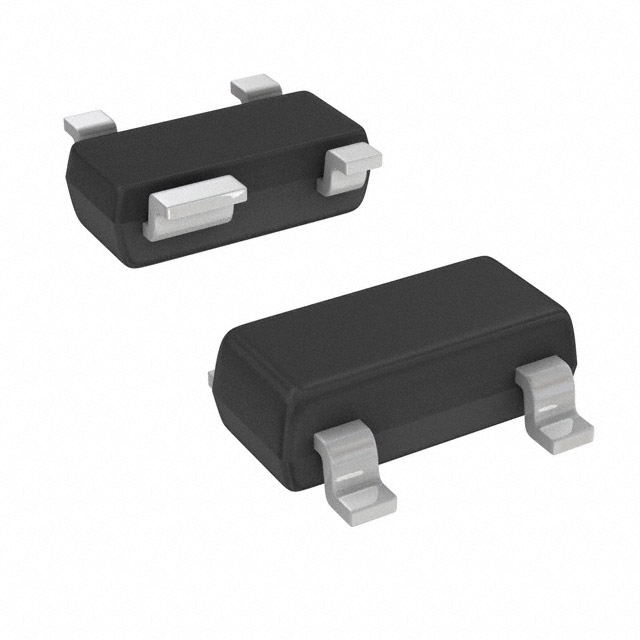

SMPA1304-019LF
RF DIODE PIN 200V 250MW SOT143-4Manufacturer: Skyworks Solutions Inc.
Categories: RF Diodes
Quality Control: Learn More
Skyworks Solutions Inc. RF Diode SMPA1304-019LF is a PIN diode designed for high-frequency switching and attenuation applications. This component features a PI element configuration, offering a maximum reverse voltage of 200V and a power dissipation capability of 250 mW. With a capacitance of 0.45pF at 30V and 1MHz, and a low on-state resistance of 2 Ohms at 100mA and 100MHz, it is optimized for performance in demanding RF circuits. The operating temperature range spans from -65°C to 150°C. Supplied in a SOT-143 package, this diode is suitable for use in telecommunications, radar systems, and other advanced RF front-end designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Diode Type | PIN - PI Element |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Capacitance @ Vr, F | 0.45pF @ 30V, 1MHz |
| Resistance @ If, F | 2Ohm @ 100mA, 100MHz |
| Voltage - Peak Reverse (Max) | 200V |
| Supplier Device Package | SOT-143 |
| Power Dissipation (Max) | 250 mW |
