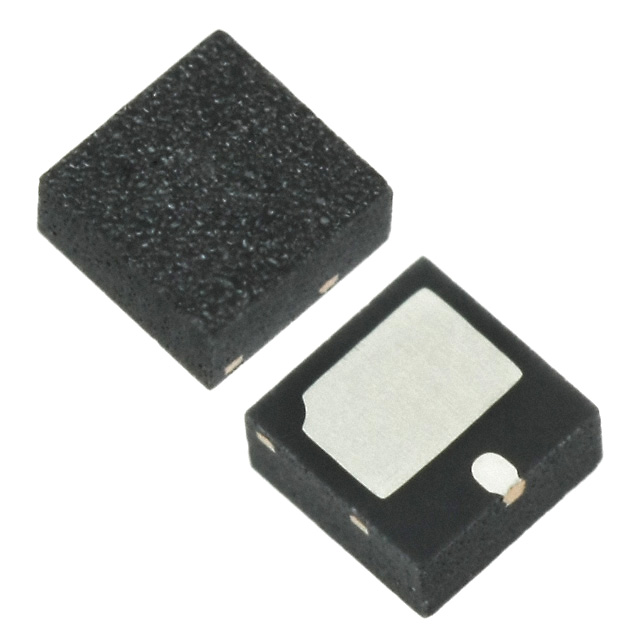

SMP1331-087LF
RF DIODE PIN 200V 750MW 2QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Diodes
Quality Control: Learn More
Skyworks Solutions Inc. SMP1331-087LF is a single PIN RF diode designed for high-performance applications. This component features a maximum reverse voltage of 200V and a maximum forward current of 200 mA, with a power dissipation capability of 750 mW. The device exhibits a low capacitance of 0.35pF at 30V and 1MHz, and a low on-resistance of 500mOhm at 100mA and 100MHz, crucial for efficient RF switching and attenuation. Its 2-QFN (2x2) package with an exposed pad ensures excellent thermal management and signal integrity. Operating across a wide temperature range of -55°C to 175°C (TJ), the SMP1331-087LF is suitable for demanding applications in wireless infrastructure, satellite communications, and test and measurement equipment. Supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 70 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-VSFN Exposed Pad |
| Diode Type | PIN - Single |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Capacitance @ Vr, F | 0.35pF @ 30V, 1MHz |
| Resistance @ If, F | 500mOhm @ 100mA, 100MHz |
| Voltage - Peak Reverse (Max) | 200V |
| Supplier Device Package | 2-QFN (2x2) |
| Current - Max | 200 mA |
| Power Dissipation (Max) | 750 mW |
