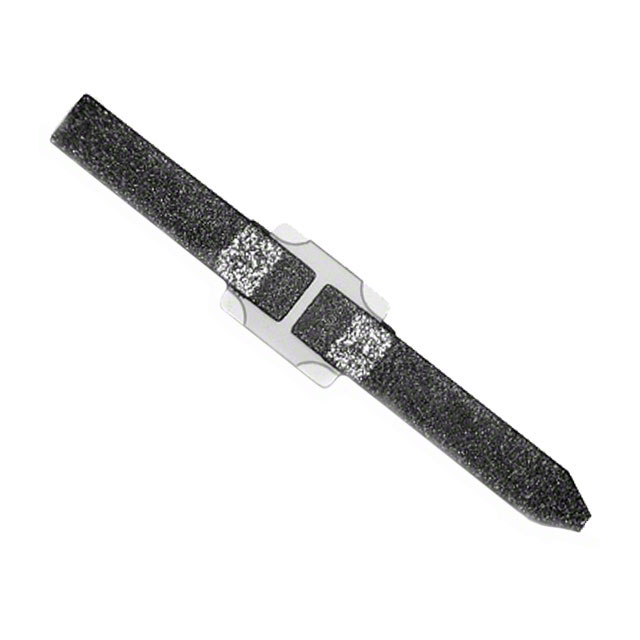

DSG9500-000
RF DIODE PIN 100V 250MWManufacturer: Skyworks Solutions Inc.
Categories: RF Diodes
Quality Control: Learn More
Skyworks Solutions Inc. DSG9500-000 is a single PIN RF diode designed for high-performance applications requiring precise control of RF signals. This component features a 100V peak reverse voltage capability and a maximum power dissipation of 250mW. With a low capacitance of 0.025pF at 50V and 1MHz, and a low resistance of 4 Ohms at 50mA and 100MHz, it offers excellent insertion loss and isolation characteristics. The operating temperature range is from -65°C to 150°C, ensuring reliability across demanding environmental conditions. This RF diode is commonly utilized in wireless infrastructure, satellite communications, and radar systems. It is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 41 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Diode Type | PIN - Single |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Capacitance @ Vr, F | 0.025pF @ 50V, 1MHz |
| Resistance @ If, F | 4Ohm @ 50mA, 100MHz |
| Voltage - Peak Reverse (Max) | 100V |
| Supplier Device Package | - |
| Power Dissipation (Max) | 250 mW |
Request a Quote
