SKY65404-21
IC AMP 802.11 4.9GHZ-5.9GHZ 6QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More

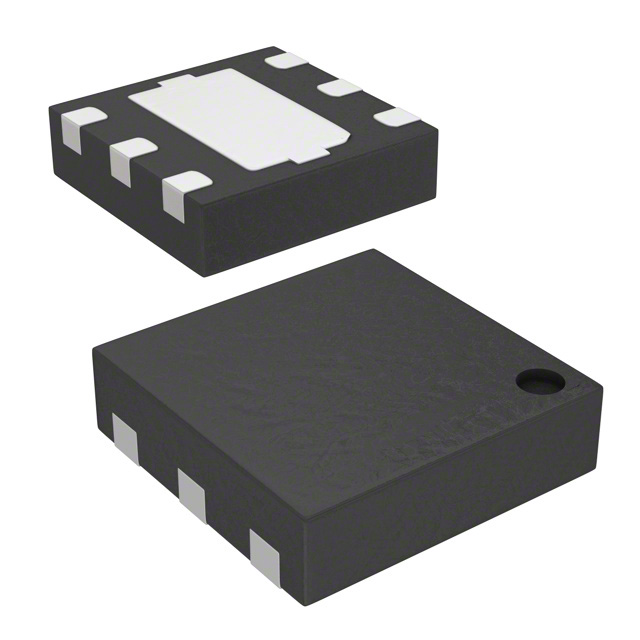

Skyworks Solutions Inc. SKY65404-21 is a high-performance RF amplifier designed for 802.11/WiFi and WLAN applications. Operating across the 4.9GHz to 5.9GHz frequency band, this component offers a typical gain of 13dB and a noise figure of 1dB. The SKY65404-21 is housed in a compact 6-QFN (1.5x1.5) package with an exposed pad for enhanced thermal management, suitable for surface mount assembly. It operates with a supply voltage range of 2.8V to 5V and is supplied in tape and reel packaging. This device is integral to wireless communication systems, finding use in consumer electronics and networking infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 4.9GHz ~ 5.9GHz |
| RF Type | 802.11/WiFi, WLAN |
| Voltage - Supply | 2.8V ~ 5V |
| Gain | 13dB |
| Current - Supply | - |
| Noise Figure | 1dB |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | 6-QFN (1.5x1.5) |
