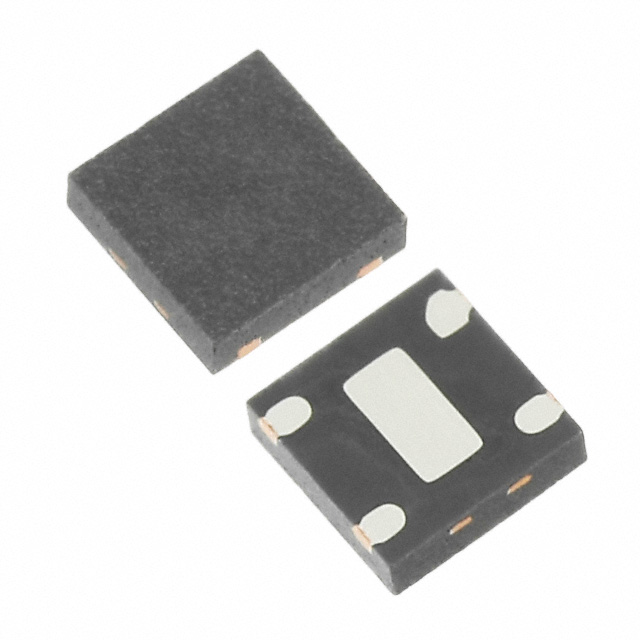

SKY65053-377LF
IC AMP CELLULAR 400MHZ-6GHZ 4QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Skyworks Solutions Inc. SKY65053-377LF is a broadband RF amplifier designed for cellular, GPS, and ISM applications. This component offers a wide operating frequency range from 400MHz to 6GHz, making it suitable for diverse wireless communication systems. Featuring a low noise figure of 0.6dB at 2.4GHz and a gain of 15dB, the SKY65053-377LF provides excellent signal amplification with minimal noise contribution. Its P1dB output power is 10dBm, ensuring robust performance in demanding RF environments. The device operates from a supply voltage of 2V to 5.25V and draws a current of 100mA. Packaged in a compact 4-QFN (2x2) with an exposed pad, it is ideal for surface mount assembly. This amplifier is commonly utilized in sectors such as telecommunications, satellite navigation, and industrial wireless control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 6GHz |
| RF Type | Cellular, GPS, ISM |
| Voltage - Supply | 2V ~ 5.25V |
| Gain | 15dB |
| Current - Supply | 100mA |
| Noise Figure | 0.6dB |
| P1dB | 10dBm |
| Test Frequency | 2.4GHz |
| Supplier Device Package | 4-QFN (2x2) |
