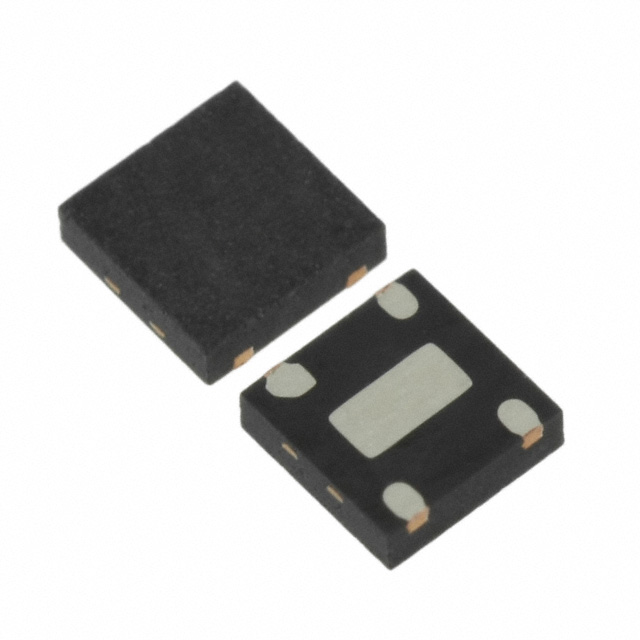

SKY65051-377LF
IC RF AMP 400MHZ-6GHZ 4QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Skyworks Solutions Inc. SKY65051-377LF is a versatile RF amplifier designed for operation across a broad frequency range of 400MHz to 6GHz. This monolithic integrated circuit features a compact 4-QFN (2x2) exposed pad package, ideal for surface mount applications. Delivering a typical gain of 16dB at a test frequency of 2.4GHz, the SKY65051-377LF exhibits a low noise figure of 0.65dB and a P1dB output power of 12dBm. It operates efficiently with a supply voltage of 3V and a nominal supply current of 20mA. This component finds application in wireless infrastructure, mobile devices, and defense systems where high-performance RF amplification is critical. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 6GHz |
| RF Type | - |
| Voltage - Supply | 3V |
| Gain | 16dB |
| Current - Supply | 20mA |
| Noise Figure | 0.65dB |
| P1dB | 12dBm |
| Test Frequency | 2.4GHz |
| Supplier Device Package | 4-QFN (2x2) |
