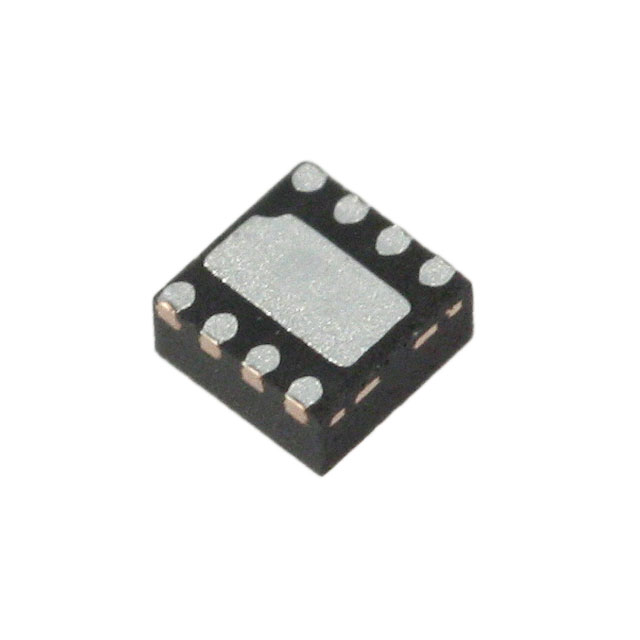

SKY65037-360LF
IC AMP CDMA 700MHZ-1.2GHZ 8QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Skyworks Solutions Inc. SKY65037-360LF is a high-performance RF amplifier designed for multi-mode wireless applications. This component operates across a frequency range of 700MHz to 1.2GHz, supporting CDMA, GSM, and TDMA standards, as well as WCDMA. It delivers a typical gain of 25dB at 900MHz with a low noise figure of 0.6dB, ensuring efficient signal amplification. The output power at 1dB compression (P1dB) is 18dBm. This device is housed in an 8-QFN (2x2) package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. Powering this RF amplifier requires a supply voltage of up to 5.5V, drawing a current of 100mA. It is supplied on a tape and reel for automated assembly processes. This amplifier is commonly found in base stations and mobile device front-end modules.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 700MHz ~ 1.2GHz |
| RF Type | CDMA, GSM, TDMA, WCDMA |
| Voltage - Supply | 5.5V |
| Gain | 25dB |
| Current - Supply | 100mA |
| Noise Figure | 0.6dB |
| P1dB | 18dBm |
| Test Frequency | 900MHz |
| Supplier Device Package | 8-QFN (2x2) |
