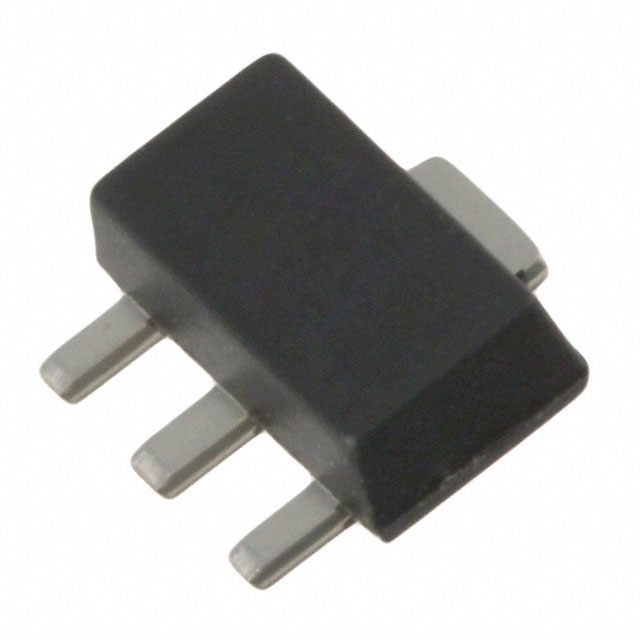

productimage

SKY65013-70LF

IC AMP WIMAX 100MHZ-7GHZ SOT89-4

Manufacturer: Skyworks Solutions Inc.

Categories: RF Amplifiers

Quality Control: Learn More

Skyworks Solutions Inc. SKY65013-70LF is a high-performance RF amplifier designed for WiMax and WLAN applications. This surface-mount component operates across a broad frequency range from 100MHz to 7GHz, making it suitable for diverse wireless communication systems. Featuring a gain of 12.5dB and a P1dB of 12.5dBm at 7GHz, it offers efficient signal amplification. The device exhibits a noise figure of 5.5dB, ensuring minimal signal degradation. Supplied in a SOT-89-4 package, the SKY65013-70LF is configured for tape and reel packaging. It operates with a supply voltage of 3.5V and a typical current draw of 120mA. This component is utilized in the telecommunications and wireless networking industries.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / CaseTO-243AA
Mounting TypeSurface Mount
Frequency100MHz ~ 7GHz
RF TypeWiMax, WLAN
Voltage - Supply3.5V
Gain12.5dB
Current - Supply120mA
Noise Figure5.5dB
P1dB12.5dBm
Test Frequency7GHz
Supplier Device PackageSOT-89-4
