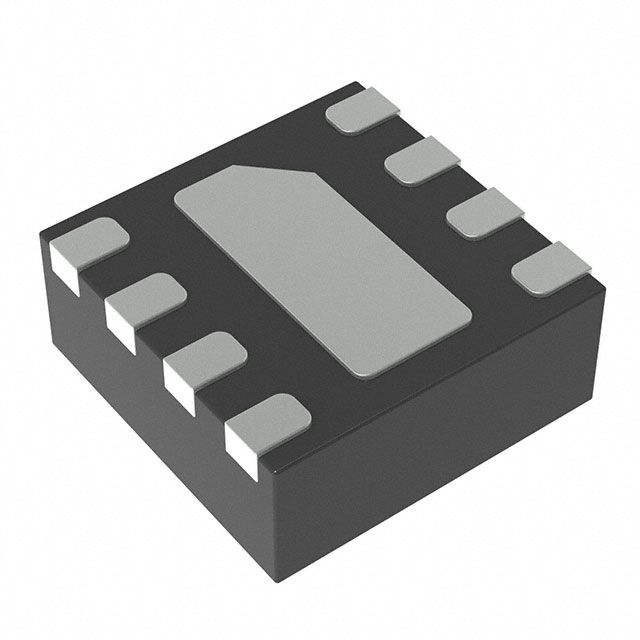

SE2574BL-RC
IC AMP 802.11B/G/N 2.4GHZ 8QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Skyworks Solutions Inc. SE2574BL-RC is a highly integrated RF power amplifier designed for 802.11b/g/n WLAN applications operating within the 2.4GHz to 2.5GHz frequency band. This device offers a nominal gain of 29dB with a P1dB compression point of 25dBm, ensuring robust performance in demanding wireless environments. With a typical supply current of 165mA and a wide operating voltage range of 2.7V to 5V, it is optimized for power efficiency. The SE2574BL-RC is housed in an 8-QFN (2x2) package with an exposed pad, suitable for surface mount assembly. This amplifier finds extensive use in consumer electronics, Wi-Fi access points, and portable wireless devices.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz |
| RF Type | 802.11b/g/n, WLAN |
| Voltage - Supply | 2.7V ~ 5V |
| Gain | 29dB |
| Current - Supply | 165mA |
| Noise Figure | - |
| P1dB | 25dBm |
| Test Frequency | 2.4GHz ~ 2.5GHz |
| Supplier Device Package | 8-QFN (2x2) |
