ACA1240
IC AMP CATV 50MHZ-1.218GHZ 34SMDManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More

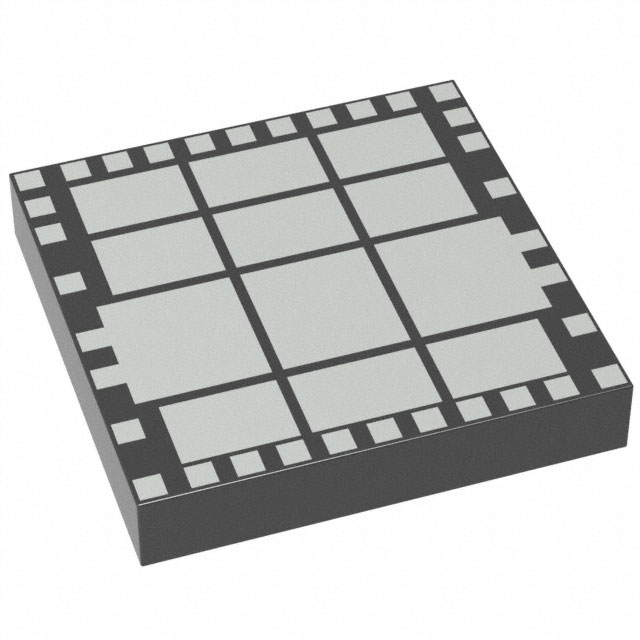

Skyworks Solutions Inc. ACA1240 is a high-performance RF amplifier designed for Cable TV (CATV) infrastructure. This electronic component operates across a broad frequency range from 50MHz to 1.218GHz, providing a robust gain of 35dB at 1.218GHz. It features a low noise figure of 4.5dB, ensuring signal integrity in demanding applications. The device is supplied in a 34-SMD module with dimensions of 11x11mm, suitable for surface mount assembly. Powering the ACA1240 requires a 12V supply with a typical current draw of 500mA. This amplifier is commonly found in broadband communication systems, including cable television networks and high-speed data transmission. The ACA1240 is available on Tape & Reel (TR) packaging for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 34-SMD Module |
| Mounting Type | Surface Mount |
| Frequency | 50MHz ~ 1.218GHz |
| RF Type | CATV |
| Voltage - Supply | 12V |
| Gain | 35dB |
| Current - Supply | 500mA |
| Noise Figure | 4.5dB |
| P1dB | - |
| Test Frequency | 1.218GHz |
| Supplier Device Package | 34-SMD (11x11) |
