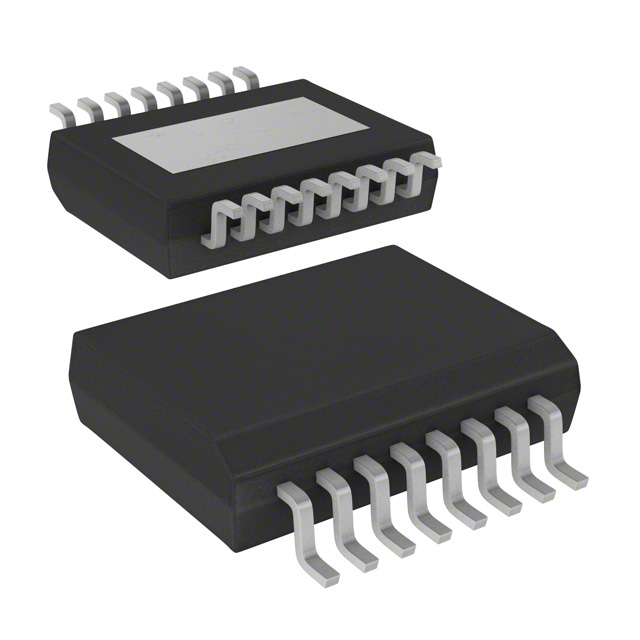

ACA0862DRS7P2
IC RF AMP CATV 1GHZ 16SOICManufacturer: Skyworks Solutions Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Skyworks Solutions Inc. ACA0862DRS7P2 is a high-performance RF amplifier designed for CATV applications. Operating up to 1GHz, this component offers a nominal gain of 11.8dB at a test frequency of 1GHz. It requires a 12V supply voltage and draws a typical current of 530mA. The device features a noise figure of 4dB, ensuring efficient signal amplification. Packaged in a 16-SOIC-EP (Exposed Pad) format, the ACA0862DRS7P2 is designed for surface mount installation and is supplied on tape and reel. This RF amplifier is a critical component in broadband access networks and cable television infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1GHz |
| RF Type | CATV |
| Voltage - Supply | 12V |
| Gain | 11.8dB |
| Current - Supply | 530mA |
| Noise Figure | 4dB |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | 16-SOIC-EP |
