500DSAA-ACF
XTAL OSC PROG XO LVDS 1.8V 10PPMManufacturer: Skyworks Solutions Inc.
Categories: Programmable Oscillators
Quality Control: Learn More

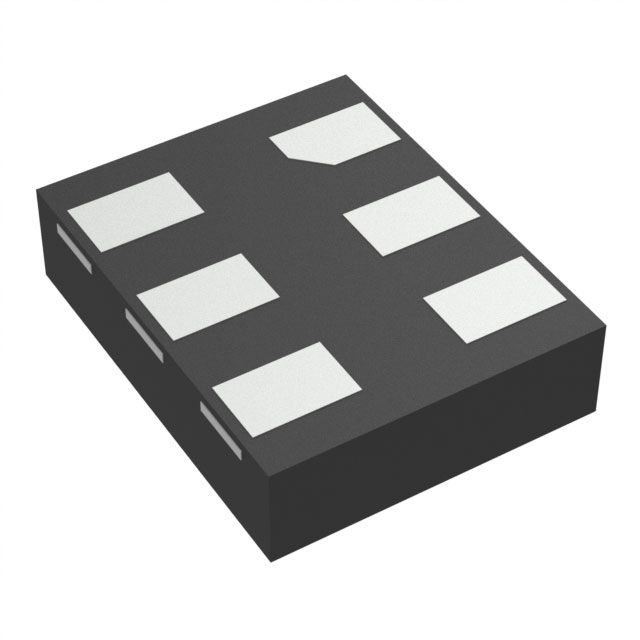

Skyworks Solutions Inc. Si500D Series programmable XO oscillator, part number 500DSAA-ACF. This device offers a configurable output frequency between 900 kHz and 200 MHz, utilizing a silicon resonator. It operates at a 1.8V supply voltage and features an Enable/Disable function. The oscillator provides LVDS output and boasts a frequency stability of ±10ppm (total ±150ppm). Packaged in a 6-SMD, No Lead surface mount configuration with dimensions of 4.00mm x 3.20mm and a maximum height of 0.90mm. Typical applications include telecommunications, networking equipment, and industrial automation. The operating temperature range is 0°C to 70°C.
Additional Information
Series: Si500DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.157"" L x 0.126"" W (4.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | 0°C ~ 70°C |
| Frequency Stability | ±10ppm |
| Voltage - Supply | 1.8V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 16.5mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±150ppm |
| Available Frequency Range | 900 kHz ~ 200 MHz |
| Base Resonator | Silicon |
