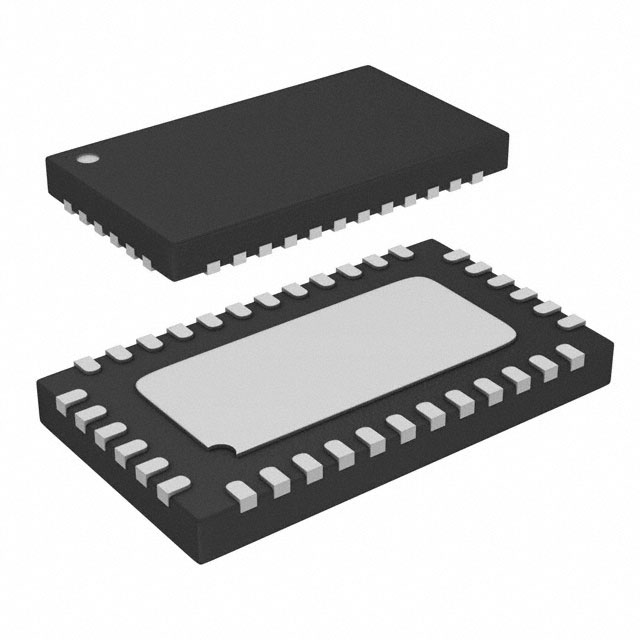

SI3454-B01-IM
IC POE CNTRL 4 CHANNEL 38QFNManufacturer: Skyworks Solutions Inc.
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
The Skyworks Solutions Inc. SI3454-B01-IM is a 4-channel Power Over Ethernet (PoE) controller, compliant with IEEE 802.3at (PoE+) and 802.3af (PoE) standards. This device features a 38-QFN (5x7) package with an exposed pad, designed for surface mount applications. It operates within a voltage supply range of 44V to 57V, with a typical supply current of 2mA. The SI3454-B01-IM is suitable for applications requiring efficient power delivery over Ethernet infrastructure, including telecommunications equipment, wireless access points, and security systems. The component is supplied in trays and operates across an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 38-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Controller (PSE), DC/DC |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 44V ~ 57V |
| Current - Supply | 2mA |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 38-QFN (5x7) |
| Auxiliary Sense | No |
| Number of Channels | 4 |
