AAT4610BIGV-1-T1
IC PWR SWITCH P-CHAN 1:1 SOT23-5Manufacturer: Skyworks Solutions Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Skyworks Solutions Inc. ASPM™ series power switch, part number AAT4610BIGV-1-T1, is a P-Channel MOSFET designed for high-side load management. This general-purpose switch offers a 1:1 input-to-output ratio and supports an output current of up to 2A. Integrated fault protection includes adjustable current limiting, over-temperature shutdown, and undervoltage lockout (UVLO), ensuring robust operation. The device features a low on-resistance of 145mOhm (typical) and operates with a load voltage range of 2.4V to 5.5V. The AAT4610BIGV-1-T1 is supplied in a SOT-23-5 package and is suitable for applications in consumer electronics and industrial systems requiring efficient power distribution.
Additional Information
Series: ASPM™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 145mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | SOT-23-5 |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
Request a Quote
Clients Also Buy
AAT4685IWP-1-T1
IC BATT PROTECTION LI-ION 12TDFN
AAT4618IGV-0.5-1-T1
IC PWR SWITCH P-CHAN 1:1 SOT23-5

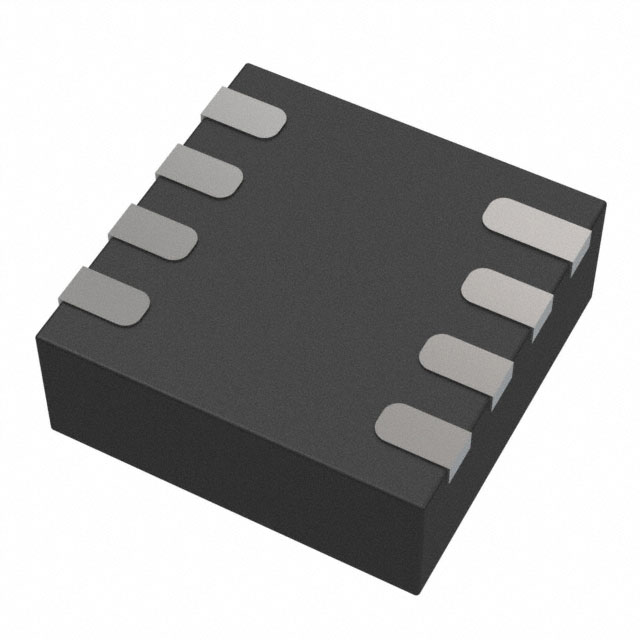

AAT4282AIPS-3-T1
