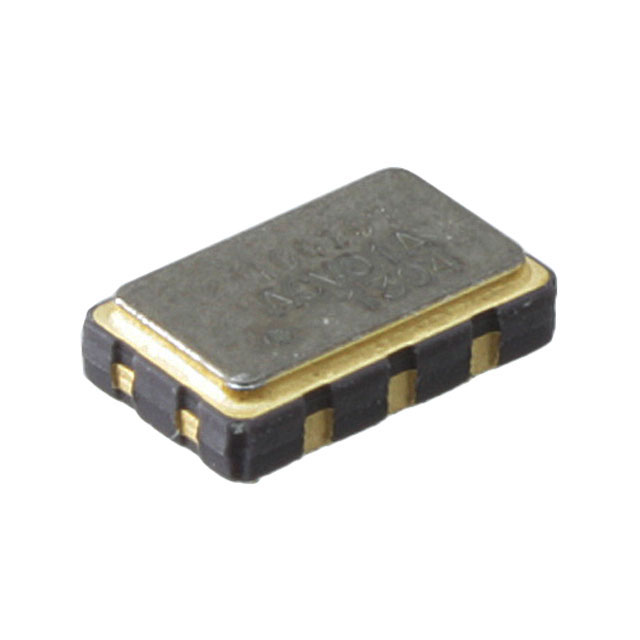

550AD10M0000DG
XTAL OSC VCXO 10.0000MHZ LVPECLManufacturer: Skyworks Solutions Inc.
Categories: Oscillators
Quality Control: Learn More
Skyworks Solutions Inc. Si550 Series VCXO oscillator, part number 550AD10M0000DG, provides a precise 10 MHz output. This Voltage-Controlled Crystal Oscillator (VCXO) features an LVPECL output and operates from a 3.3V supply. The device offers an Absolute Pull Range (APR) of ±80ppm and a frequency stability of ±50ppm, making it suitable for applications requiring tight frequency control. It includes an Enable/Disable function for operational management. The component is housed in a 6-SMD, No Lead package with dimensions of 7.00mm x 5.00mm and a maximum seated height of 1.80mm. Operating within a temperature range of -40°C to 85°C, this surface-mount component is utilized in telecommunications, networking, and industrial control systems. The maximum supply current is 130mA.
Additional Information
Series: Si550RoHS Status: RoHS CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | VCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 130mA |
| Height - Seated (Max) | 0.071"" (1.80mm) |
| Absolute Pull Range (APR) | ±80ppm |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
