530BC145M800DGR
XTAL OSC XO 145.8000MHZ LVDS SMDManufacturer: Skyworks Solutions Inc.
Categories: Oscillators
Quality Control: Learn More

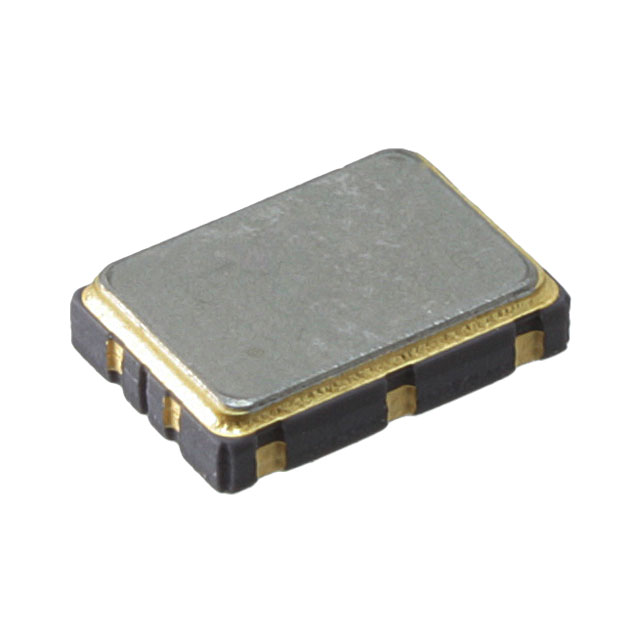

Skyworks Solutions Inc. Si530 series XO (Standard) oscillator, part number 530BC145M800DGR, operates at a frequency of 145.8 MHz with LVDS output. This crystal-based oscillator features an Enable/Disable function and is supplied in a 3.3V configuration. It offers a frequency stability of ±7ppm and has a maximum supply current of 98mA. The component is housed in a 6-SMD, No Lead package with dimensions of 0.276" L x 0.197" W (7.00mm x 5.00mm) and a maximum seated height of 0.071" (1.80mm). Designed for surface mounting, it operates within an ambient temperature range of -40°C to 85°C. This oscillator is commonly utilized in telecommunications, industrial automation, and consumer electronics applications. It is provided in Tape & Reel (TR) packaging.
Additional Information
Series: Si530RoHS Status: RoHS CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±7ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 98mA |
| Height - Seated (Max) | 0.071"" (1.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 145.8 MHz |
| Base Resonator | Crystal |
