515BCA10M0000AAGR
XTAL OSC VCXO 10.0000MHZ LVDSManufacturer: Skyworks Solutions Inc.
Categories: Oscillators
Quality Control: Learn More

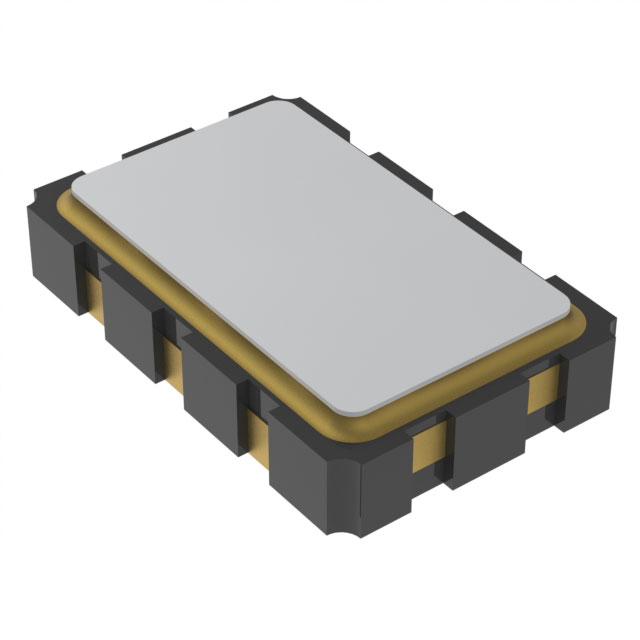

Skyworks Solutions Inc. Si515 series 515BCA10M0000AAGR is a 10 MHz Voltage Controlled Crystal Oscillator (VCXO) with LVDS output. This surface mount component operates from a 3.3V supply and features an Enable/Disable function. The oscillator provides a frequency stability of ±20ppm with an absolute pull range of ±50ppm from its base crystal resonator. Designed for operation across a temperature range of -40°C to 85°C, it is housed in a 6-SMD, No Lead package with dimensions of 7.00mm x 5.00mm. The maximum supply current is 26mA. This component is commonly utilized in telecommunications, networking, and industrial automation applications.
Additional Information
Series: Si515RoHS Status: RoHS CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | VCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 26mA |
| Height - Seated (Max) | 0.071"" (1.80mm) |
| Absolute Pull Range (APR) | ±50ppm |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
