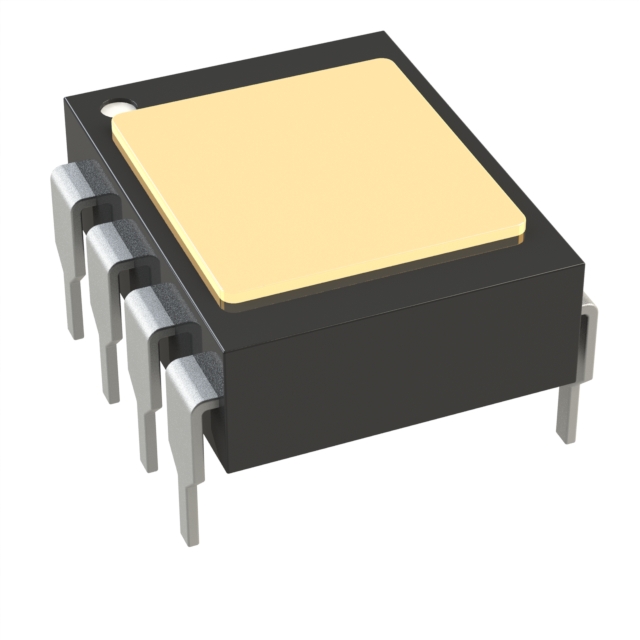

OLH2049SX
HERMETIC LINEAR OPTOCOUPLER SB FManufacturer: Skyworks Solutions Inc.
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 2500Vrms 2 Channel 8-DIP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | - |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-DIP |
| Voltage - Output (Max) | 40V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 15µs, 15µs |
| Number of Channels | 2 |
| Current - DC Forward (If) (Max) | 1 A |
Request a Quote
