SKY81290-11-563LFR
IC LED DRIVER RGLTR 1.2A 14TDFNManufacturer: Skyworks Solutions Inc.
Categories: LED Drivers
Quality Control: Learn More

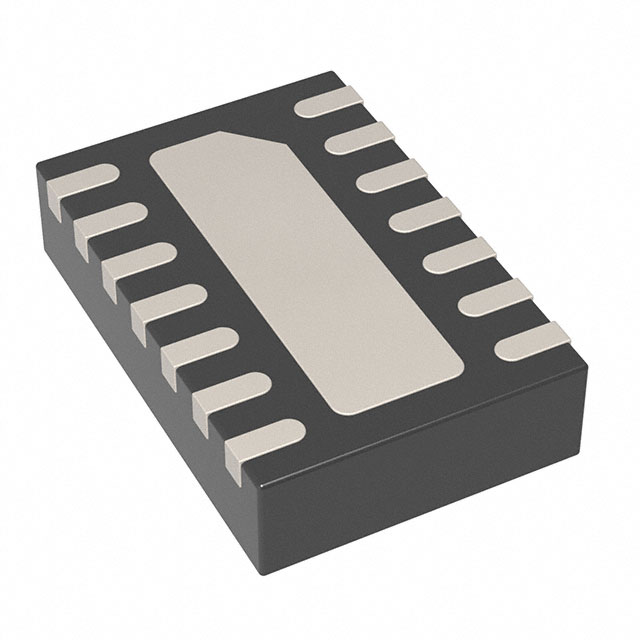

The Skyworks Solutions Inc. SKY81290-11-563LFR is a highly efficient DC-DC step-up (boost) LED driver IC. This component is designed for single-channel operation, delivering a regulated output current of up to 1.2A. It features a 2MHz switching frequency and operates from a supply voltage range of 2.7V to 5.5V. The device is housed in a compact 14-TDFN (3x2) package with an exposed pad for enhanced thermal management, suitable for surface mount applications. This LED driver is utilized in demanding sectors such as camera flash and mobile communications. The SKY81290-11-563LFR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash, Mobile Communications |
| Current - Output / Channel | 1.2A |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 14-TDFN (3x2) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
