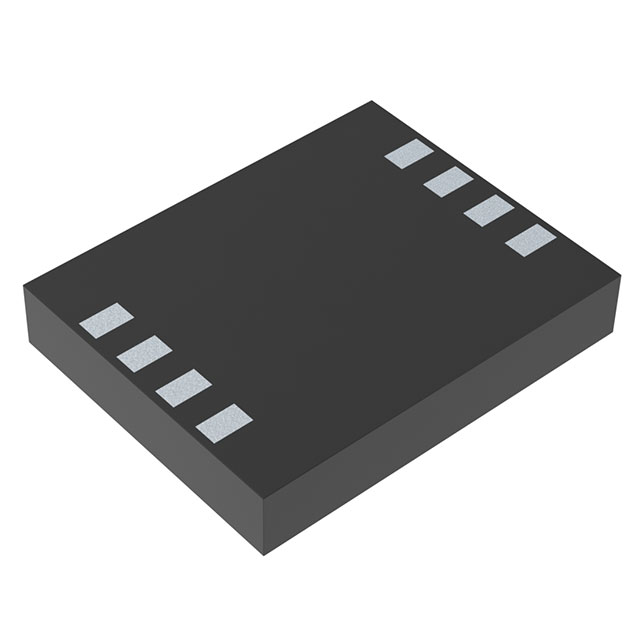

productimage

SI8621BB-B-IM1R

2.5KV DUAL CHANNEL ISOLATOR IN C

Manufacturer: Skyworks Solutions Inc.

Categories: Digital Isolators

Quality Control: Learn More

Skyworks Solutions Inc. SI8621BB-B-IM1R is a general-purpose digital isolator featuring 2.5kVrms isolation and two unidirectional channels. This component operates at data rates up to 150Mbps with a typical propagation delay of 13ns and a CMTI of 35kV/µs. The SI8621BB-B-IM1R is housed in an 8-VDFN (5x4) package and supports a supply voltage range of 2.5V to 5.5V. Its capacitive coupling technology ensures robust signal transmission across the isolation barrier. This device is suitable for applications in industrial automation, power supplies, and medical equipment. The component is supplied in a Tape & Reel (TR) package.

Additional Information

Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case8-VDFN
Mounting TypeSurface Mount
TypeGeneral Purpose
Operating Temperature-40°C ~ 125°C
Voltage - Supply2.5V ~ 5.5V
Data Rate150Mbps
TechnologyCapacitive Coupling
Voltage - Isolation2500Vrms
Inputs - Side 1/Side 21/1
Supplier Device Package8-DFN (5x4)
Rise / Fall Time (Typ)2.5ns, 2.5ns
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)13ns, 13ns
Isolated PowerNo
Channel TypeUnidirectional
Pulse Width Distortion (Max)4.5ns
Number of Channels2
