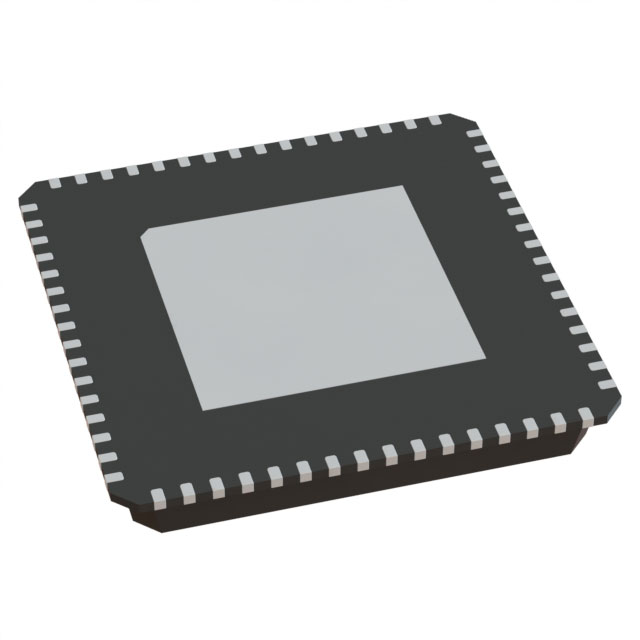

SI5382E-E-GM
IC CLOCK JITTER ATTEN 64QFNManufacturer: Skyworks Solutions Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Skyworks Solutions Inc. SI5382E-E-GM is a dual-output clock jitter attenuator IC designed for high-performance applications. This component supports maximum frequencies of 735MHz and 2.94912GHz, offering versatile signal conditioning capabilities. The SI5382E-E-GM features differential input and output, along with selectable output formats including HCSL, LVCMOS, LVDS, and LVPECL, enabling seamless integration into diverse system architectures. Input options include LVCMOS and crystal, further enhancing its flexibility.
With a configurable divider/multiplier functionality and a ratio of 4:12 for input to output, this device allows for precise frequency management. The 64-VFQFN Exposed Pad package ensures efficient thermal performance and reliable surface mounting. Operating within a temperature range of -40°C to 85°C and requiring a supply voltage between 1.71V and 3.47V, the SI5382E-E-GM is suitable for demanding applications in telecommunications, networking, and data center infrastructure.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 735MHz, 2.94912GHz |
| Type | Clock Jitter Attenuator |
| Input | LVCMOS, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.47V |
| Ratio - Input:Output | 4:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-QFN (9x9) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 2 |
| Programmable | Not Verified |
