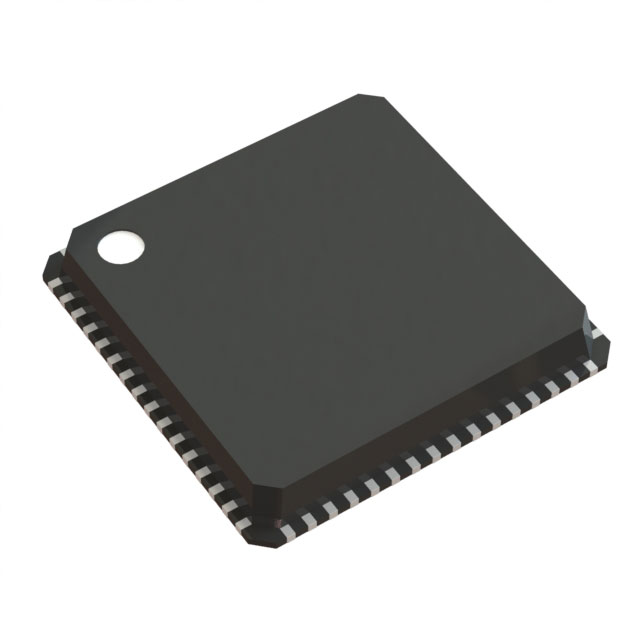

SI5380A-B-GM
IC CLOCK GEN TO 1.47456GHZ 64QFNManufacturer: Skyworks Solutions Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Skyworks Solutions Inc. SI5380A-B-GM is a versatile clock generator IC designed for high-performance applications. This single-circuit device operates across a wide temperature range of -40°C to 85°C, supporting input signals including LVCMOS, LVDS, LVPECL, and Crystal, with a maximum output frequency of 1.47GHz. The SI5380A-B-GM features dual differential inputs and outputs, offering flexible signal routing. Its output capabilities include CML, LVCMOS, LVDS, and LVPECL, accommodating diverse system requirements. The device supports a programmable input-to-output ratio of 5:12 and incorporates a Phase-Locked Loop (PLL). Supplied in a 64-VFQFN exposed pad package, this component is suitable for surface mounting. Applications span telecommunications, networking, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 1.47GHz |
| Input | LVCMOS, LVDS, LVPECL, Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.47V |
| Ratio - Input:Output | 5:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 64-QFN (9x9) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
