SI5320-H-GL
IC CLOCK MULTIPLIER 63BGAManufacturer: Skyworks Solutions Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Skyworks Solutions Inc. SI5320-H-GL is a highly accurate, fully integrated clock multiplier from the DSPLL® series. This device offers a maximum frequency of 693MHz, supporting both input and output with differential signaling. The SI5320-H-GL features a configurable divider/multiplier ratio and a Phase-Locked Loop (PLL) for precise clock generation. It operates from a 3.135V to 3.465V supply and utilizes LVTTL input signaling with CML output. The component is housed in a 63-PBGA (9x9) package, suitable for surface mounting. This clock multiplier is commonly employed in telecommunications infrastructure, high-performance computing, and networking equipment. The operating temperature range is -20°C to 85°C.
Additional Information
Series: DSPLL®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

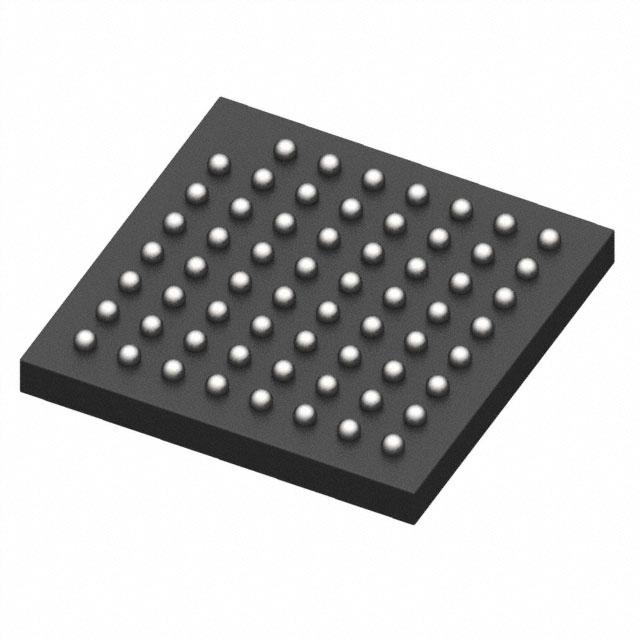

| Package / Case | 63-LBGA |
| Mounting Type | Surface Mount |
| Output | CML |
| Frequency - Max | 693MHz |
| Type | Clock Multiplier |
| Input | LVTTL |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 63-PBGA (9x9) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
