SI53301-B0002-GM
IC CLK BUFFER 2:6 725MHZ 32QFNManufacturer: Skyworks Solutions Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More

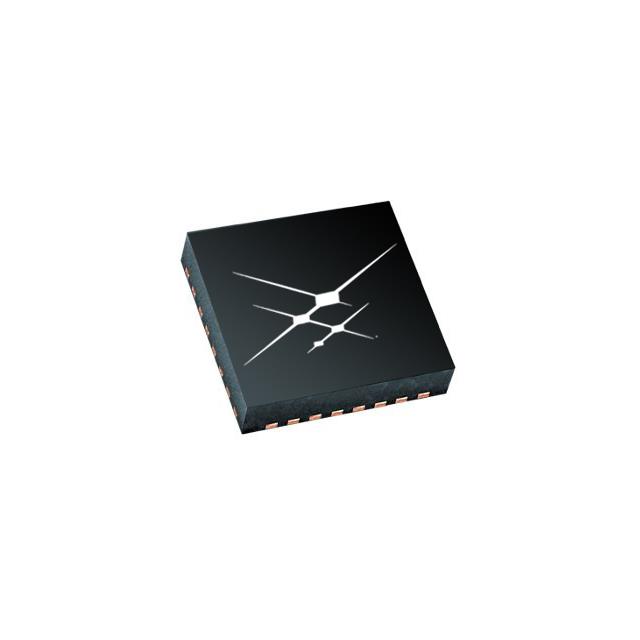

The Skyworks Solutions Inc. SI53301-B0002-GM is a high-performance clock fanout buffer designed for demanding applications. This electronic component features a 2:6 ratio, supporting differential input and output signals with a maximum frequency of 725 MHz. It accommodates various input and output standards including CML, HCSL, LVCMOS, LVDS, and LVPECL. The device operates across multiple voltage supplies: 1.71V to 1.89V, 2.38V to 2.63V, and 2.97V to 3.63V, with an operating temperature range of -40°C to 85°C. Supplied in a 32-QFN (5x5) package, it is suitable for surface mount applications. This versatile clock distribution IC finds utility in data center infrastructure, high-speed networking, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer, Translator |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V, 2.38V ~ 2.63V, 2.97V ~ 3.63V |
| Ratio - Input:Output | 2:6 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-QFN (5x5) |
| Frequency - Max | 725 MHz |
