AAT5101IUR-T1
IC AMP CLASS D MONO 2.5W 9WLCSPManufacturer: Skyworks Solutions Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

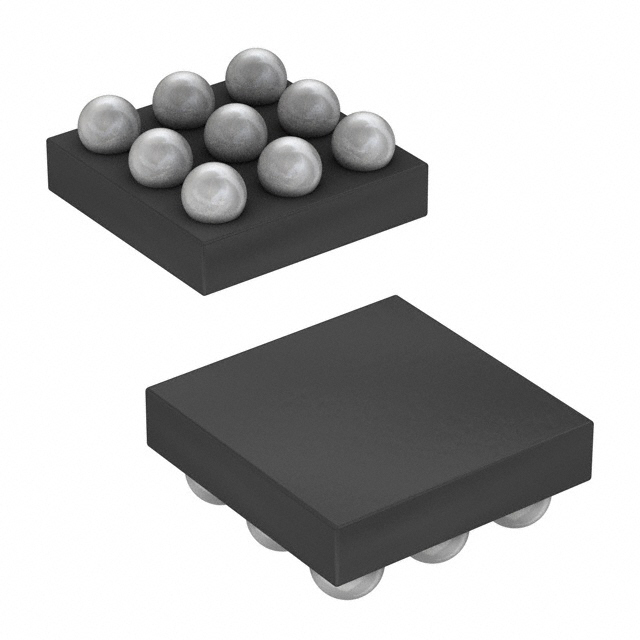

Skyworks Solutions Inc. AAT5101IUR-T1 is a Class D audio amplifier IC designed for 1-channel (mono) operation. This component delivers 2.5W into a 4-ohm load. The device features robust protection mechanisms including depop, short-circuit, and thermal shutdown, ensuring reliable operation in demanding applications. Housed in a compact 9-WLCSP (1.42x1.42mm) package, it is suitable for surface mount assembly. The AAT5101IUR-T1 operates within a supply voltage range of 2.1V to 5.5V and is specified for an operating temperature range of -40°C to 85°C. This amplifier is commonly utilized in portable electronics and consumer audio systems. Supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-WFBGA, WLCSP |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.1V ~ 5.5V |
| Max Output Power x Channels @ Load | 2.5W x 1 @ 4Ohm |
| Supplier Device Package | 9-WLCSP (1.42x1.42) |
Request a Quote
