SI53019-A02AGM
IC BUFFER ZDB PCIE 1:19 72QFNManufacturer: Skyworks Solutions Inc.
Categories: Application Specific Clock/Timing
Quality Control: Learn More

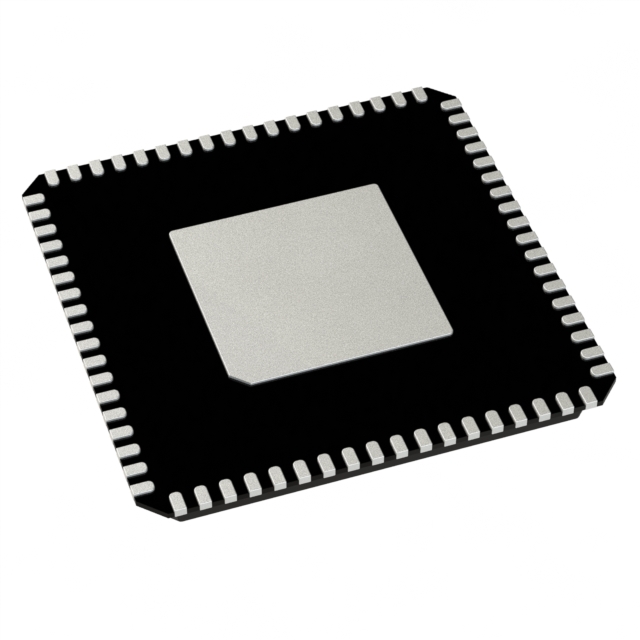

Skyworks Solutions Inc. SI53019-A02AGM is a PCIe clock buffer designed for high-speed serial data transmission applications. This single-chip solution provides a 1:19 ratio for clock distribution, supporting Intel QPI and PCI Express (PCIe) interfaces. Operating at a maximum frequency of 133.33MHz, it utilizes HCSL output signaling. The device is housed in a 72-QFN (10x10) package with an exposed pad for enhanced thermal performance and is suitable for surface mounting. Key features include a PLL for precise clock generation and a voltage supply range of 3.135V to 3.465V. This component is commonly employed in networking equipment, servers, and high-performance computing systems requiring robust clock integrity. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 72-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 133.33MHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | Intel QPI, PCI Express (PCIe) |
| Ratio - Input:Output | 1:19 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 72-QFN (10x10) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
