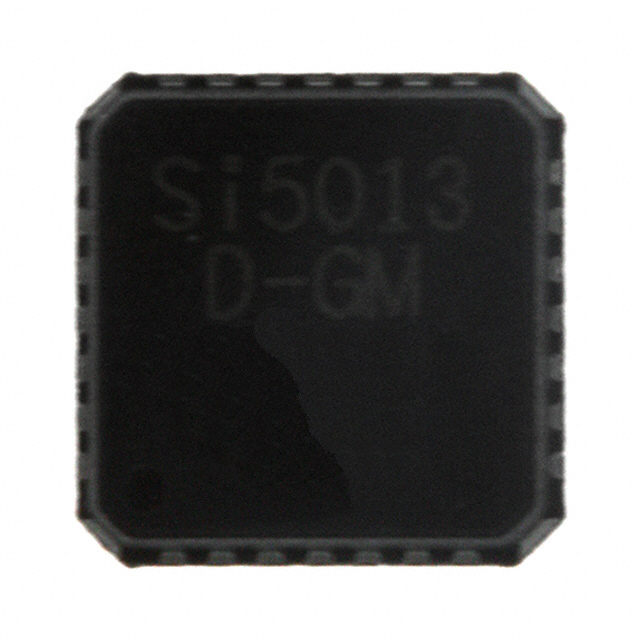

SI5013-D-GM
IC CLOCK/DATA RECOVERY 28MLPManufacturer: Skyworks Solutions Inc.
Categories: Application Specific Clock/Timing
Quality Control: Learn More
The Skyworks Solutions Inc. SI5013-D-GM is a DSPLL® series Clock and Data Recovery (CDR) integrated circuit designed for SONET/SDH and ATM applications. This 1:2 ratio device operates at a maximum frequency of 675MHz, featuring differential inputs and outputs. The SI5013-D-GM utilizes a PLL for precise timing control, with a CML output and a clock input. The component is available in a 28-MLP (5x5) surface mount package, suitable for operation within a temperature range of -40°C to 85°C. The voltage supply requirement is between 3.135V and 3.465V. This component is frequently employed in telecommunications infrastructure and high-speed data networking systems.
Additional Information
Series: DSPLL®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML |
| Frequency - Max | 675MHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | SONET/SDH, ATM applications |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-MLP (5x5) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

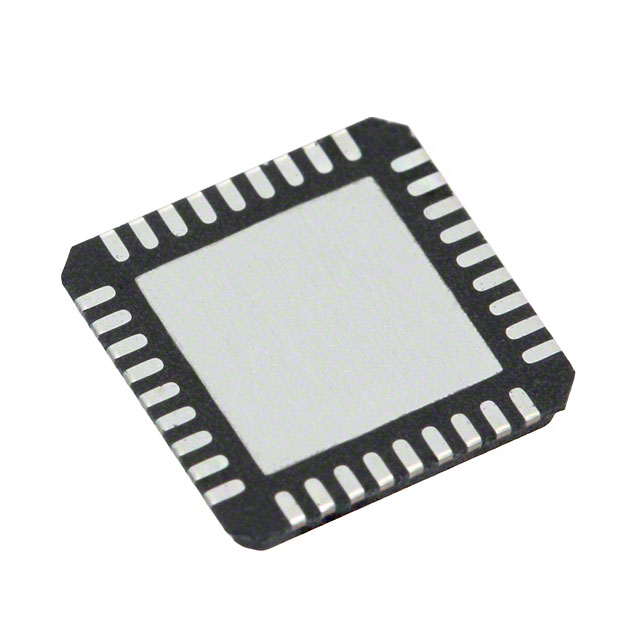

SI5317D-C-GM
IC JITTER CLEANER 36QFN
SI5317C-C-GM
IC JITTER CLEANER 36QFN

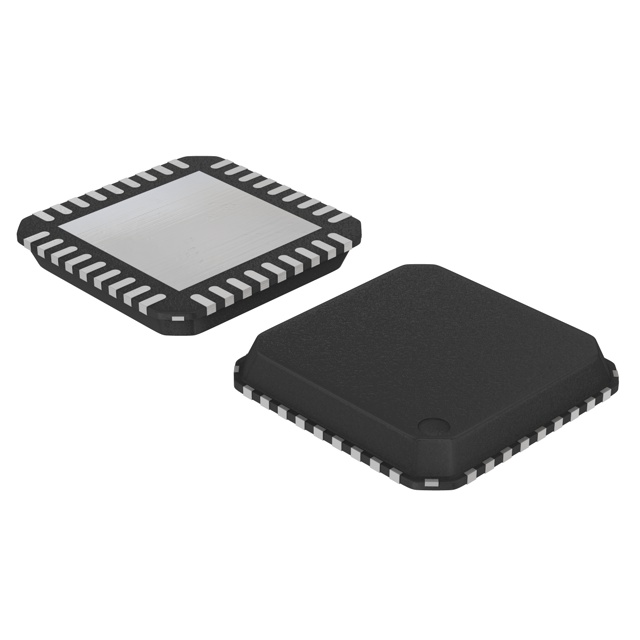

SI5319C-C-GMR
