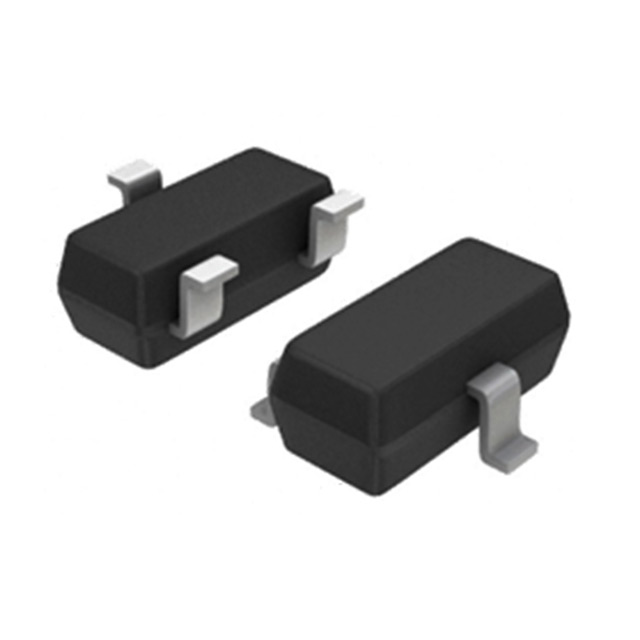

TS6001AIG325T
IC VREF SERIES 0.08% SOT23-3Manufacturer: Silicon Labs
Categories: Voltage Reference
Quality Control: Learn More
Silicon Labs TS6001AIG325T is a fixed 2.5V series voltage reference IC. This component offers a tight initial tolerance of ±0.08% and a low temperature coefficient of 10ppm/°C, ensuring stable voltage output across varying conditions. The TS6001AIG325T operates with a typical supply current of 35µA and can source up to 500µA output current, with low output noise specifications of 50µVp-p (0.1Hz to 10Hz) and 75µVrmp (10Hz to 10kHz). It is housed in a SOT-23-3 package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. The input voltage range for this device is 2.7V to 12.6V. This voltage reference is utilized in applications such as battery-powered devices, portable instrumentation, and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±0.08% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 10ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 2.7V ~ 12.6V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 35µA |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 2.5V |
| Noise - 0.1Hz to 10Hz | 50µVp-p |
| Noise - 10Hz to 10kHz | 75µVrmp |
| Current - Output | 500 µA |
