TS4100ITQ1633
IC SWITCH 8:1 105 OHM 16QFNManufacturer: Silicon Labs
Categories: Special Purpose
Quality Control: Learn More
Silicon Labs TS4100ITQ1633 is a high-performance analog switch IC designed for demanding applications. This 1-channel, 8:1 multiplexer/demultiplexer offers a low on-state resistance of 105 Ohms maximum, ensuring minimal signal degradation. Operating from a single supply voltage range of 0.8V to 5.25V, it is suitable for a wide array of electronic systems. The device is housed in a compact 16-QFN (3x3) surface-mount package, ideal for space-constrained designs. Its operating temperature range of -40°C to 85°C (TA) makes it robust for various environmental conditions. This component finds application in areas such as audio/video routing, test and measurement equipment, and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |

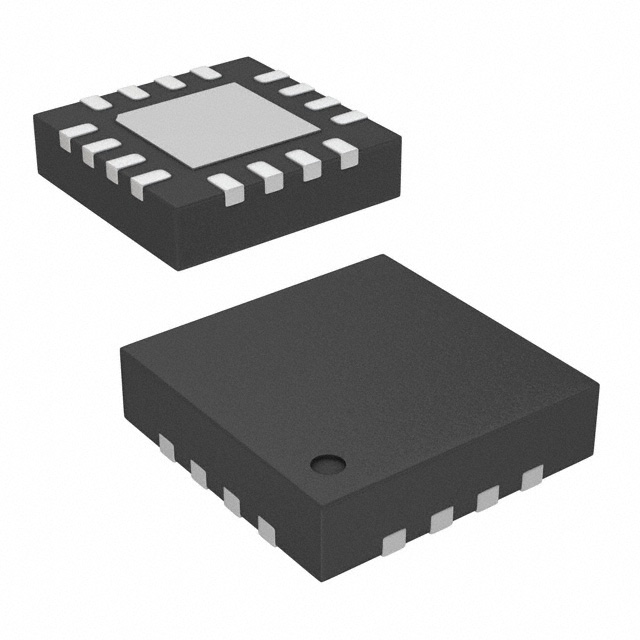

| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | - |
| On-State Resistance (Max) | 105Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Supply, Single (V+) | 0.8V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Channels | 1 |
