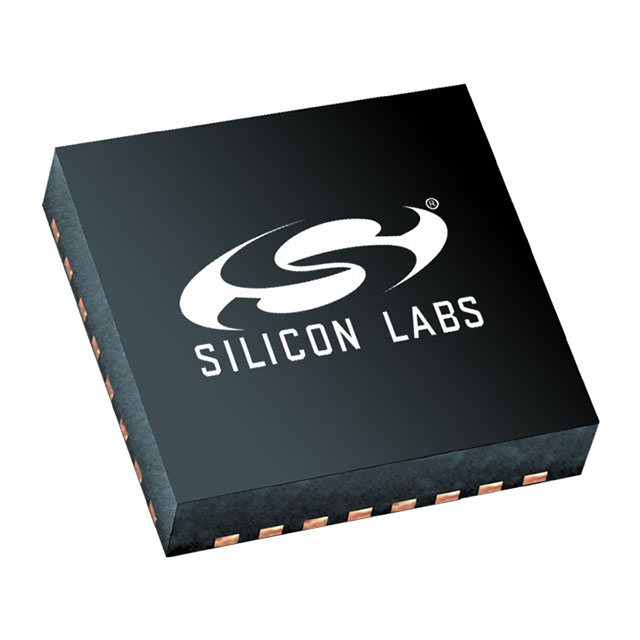

EFM8BB31F16A-B-5QFN32R
IC MCU 8BIT 16KB FLASH 32QFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs EFM8BB31F16A-B-5QFN32R is an 8-bit CIP-51 8051 microcontroller from the Busy Bee series. This AEC-Q100 qualified device operates at 50MHz and features 16KB of FLASH program memory and 2.25KB of RAM. Connectivity options include I2C, SMBus, SPI, and UART/USART. On-chip peripherals include a brown-out detect/reset, POR, PWM, and WDT. It integrates analog capabilities with 20x10/12-bit SAR ADCs and 2x12-bit DACs. The device is supplied in a 32-QFN (5x5) package with an exposed pad and is rated for automotive applications, operating from 2.2V to 3.6V over a -40°C to 125°C temperature range. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: Busy BeeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | CIP-51 8051 |
| Data Converters | A/D 20x10/12b SAR; D/A 2x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | I2C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 32-QFN (5x5) |
| Grade | Automotive |
| Number of I/O | 29 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
