C8051T603-GM
IC MCU 8BIT 4KB OTP 11QFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
The Silicon Labs C8051T60x series microcontroller, part number C8051T603-GM, is an 8-bit MCU featuring an 8051 core operating at up to 25MHz. This device offers 4KB of One-Time Programmable (OTP) program memory and 256 bytes of RAM. Connectivity options include SMBus and UART/USART. On-chip peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The internal oscillator simplifies system design. This component is packaged in an 11-QFN (3x3) with an exposed pad, suitable for surface mounting. It operates within a voltage range of 1.8V to 3.6V and is rated for an ambient temperature range of -40°C to 85°C. The C8051T603-GM is utilized in various applications, including industrial control and consumer electronics.
Additional Information
Series: C8051T60xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | SMBus (2-Wire/I2C), UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 11-QFN (3x3) |
| Number of I/O | 8 |
| Programmable | Verified |
Request a Quote
Clients Also Buy
C8051T602-GM
IC MCU 8BIT 4KB OTP 11QFN
C8051T604-GS
IC MCU 8BIT 2KB OTP 14SOIC

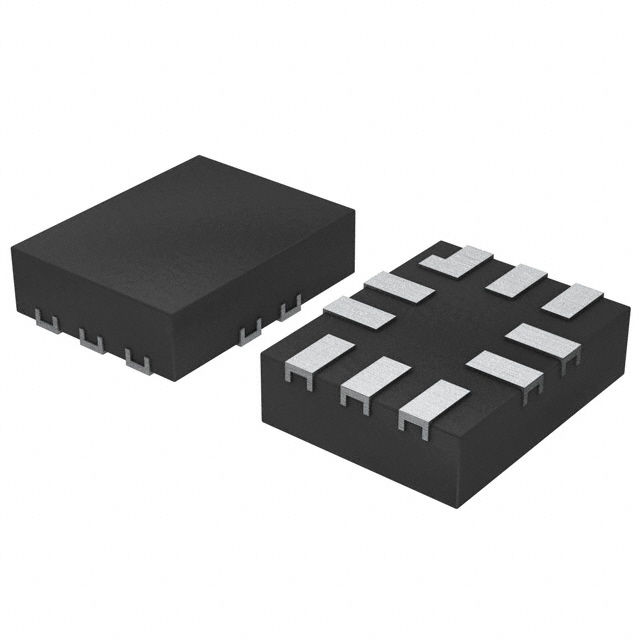

C8051T606-ZMR
