C8051F997-C-GM
IC MCU 8BIT 8KB FLASH 24QFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F9xx series microcontroller, part number C8051F997-C-GM, features an 8-bit CIP-51 8051 core operating at 25MHz. This device offers 8KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SMBus (2-Wire/I2C), SPI, and UART/USART interfaces. Integrated peripherals comprise Brown-out Detect/Reset, Capacitive Sensing, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The microcontroller is housed in a 24-WFQFN exposed pad package with dimensions of 4x4mm and is designed for surface mounting. It operates across a voltage supply range of 1.8V to 3.6V and has an operating temperature range of -40°C to 85°C. The C8051F997-C-GM is suitable for applications in consumer electronics, industrial automation, and battery-powered devices.
Additional Information
Series: C8051F9xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | CIP-51 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | SMBus (2-Wire/I2C), SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, Cap Sense, POR, PWM, WDT |
| Supplier Device Package | 24-QFN (4x4) |
| Number of I/O | 17 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
C8051F960-B-GQ
IC MCU 8BIT 128KB FLASH 80TQFP

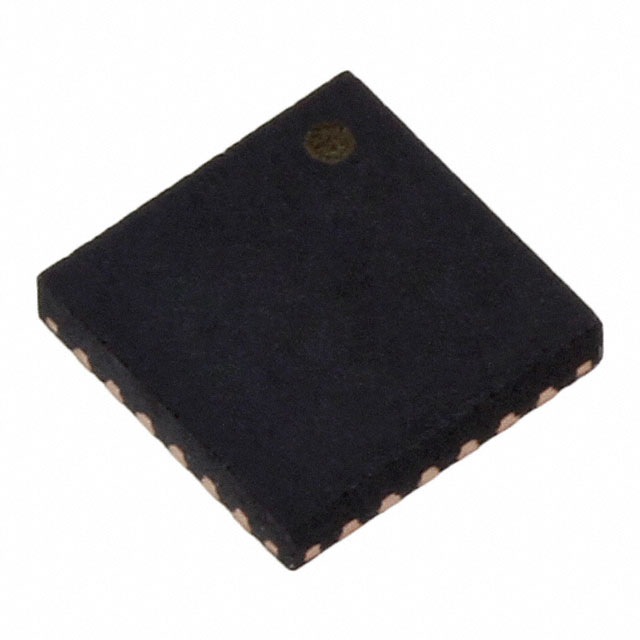

C8051F921-G-GM
IC MCU 8BIT 32KB FLASH 24QFN

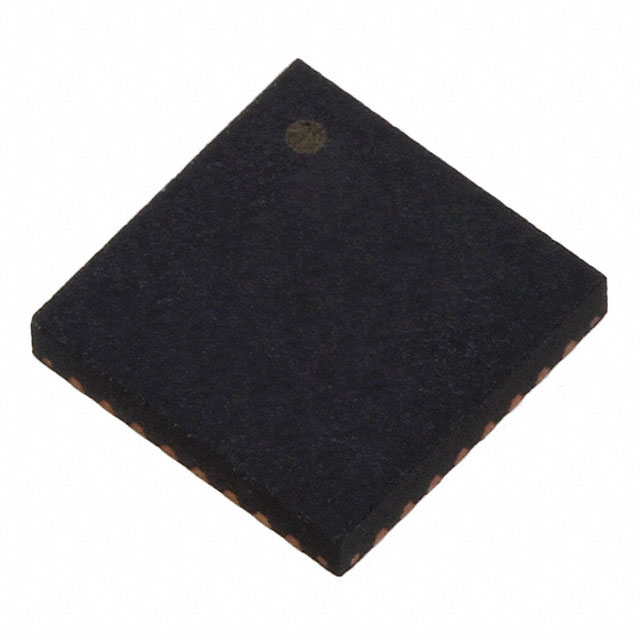

C8051F920-G-GMR
