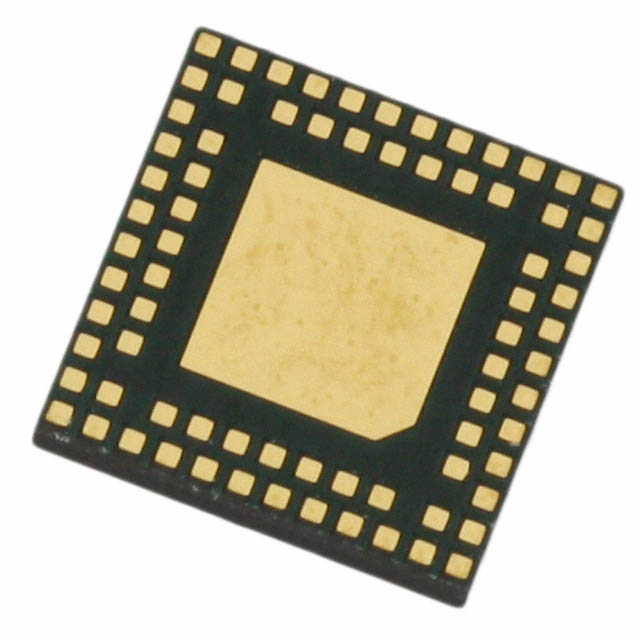

C8051F960-B-GMR
IC MCU 8BIT 128KB FLASH 76DQFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F9xx series microcontroller, part number C8051F960-B-GMR. This 8-bit 8051 core microcontroller operates at 25MHz, featuring 128KB of FLASH program memory and 8.25KB of RAM. It offers extensive connectivity options including I2C, SPI, and UART/USART interfaces. The device is equipped with a 16-channel analog-to-digital converter supporting 10-bit and 12-bit resolutions, along with peripherals such as DMA, LCD controller, POR, PWM, and WDT. The C8051F960-B-GMR is housed in a 76-DQFN (6x6) package, suitable for surface mounting. It operates within a voltage range of 1.8V to 3.8V and across an industrial temperature range of -40°C to 85°C. This component finds application in consumer electronics, industrial control, and automotive sectors. Supplied in tape and reel packaging.
Additional Information
Series: C8051F9xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 76-VFQFN Dual Rows, Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8.25K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | A/D 16x10b/12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.8V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | DMA, LCD, POR, PWM, WDT |
| Supplier Device Package | 76-DQFN (6x6) |
| Number of I/O | 57 |
| Programmable | Not Verified |
