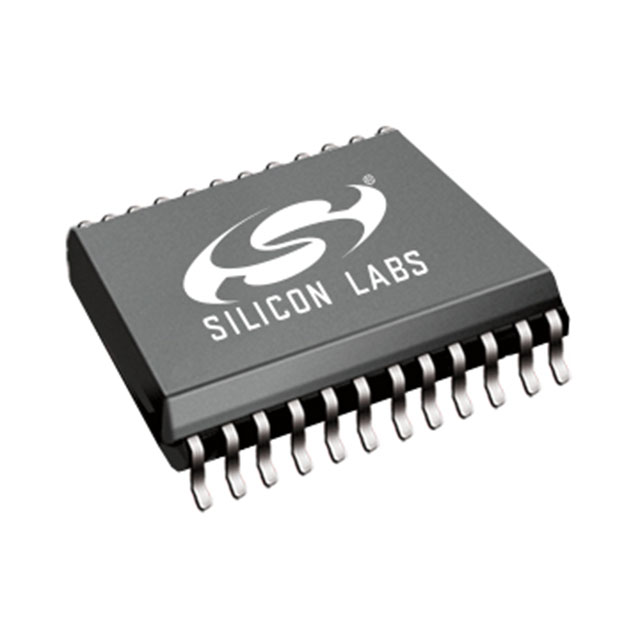

C8051F855-C-GU
IC MCU 8BIT 2KB FLASH 24SSOPManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F855-C-GU is an 8-bit microcontroller from the C8051F85x series, featuring an 8051 core operating at up to 25MHz. This device offers 2KB of FLASH program memory and 256 bytes of RAM. Connectivity options include I2C, SPI, and UART/USART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. The microcontroller is supplied in a 24-SSOP package for surface mounting and operates within an industrial temperature range of -40°C to 85°C. The supply voltage range is 2.2V to 3.6V. This component is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: C8051F85xRoHS Status: RoHS CompliantManufacturer Lead Time: 21 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Programmable | Not Verified |
