C8051F820-GUR
IC MCU 8BIT 8KB FLASH 24QSOPManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F820-GUR is an 8-bit microcontroller from the C8051F82x series. This device features an 8051 core operating at 25MHz, with 8KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SMBus (2-Wire/I2C), SPI, and UART/USART interfaces. Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The microcontroller is supplied in a 24-QSOP package, suitable for surface mounting. It operates across a voltage range of 1.8V to 3.6V and is specified for an operating temperature range of -40°C to 85°C. This component is utilized in various industrial applications, including consumer electronics and industrial automation.
Additional Information
Series: C8051F82xRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | SMBus (2-Wire/I2C), SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 24-QSOP |
| Number of I/O | 17 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

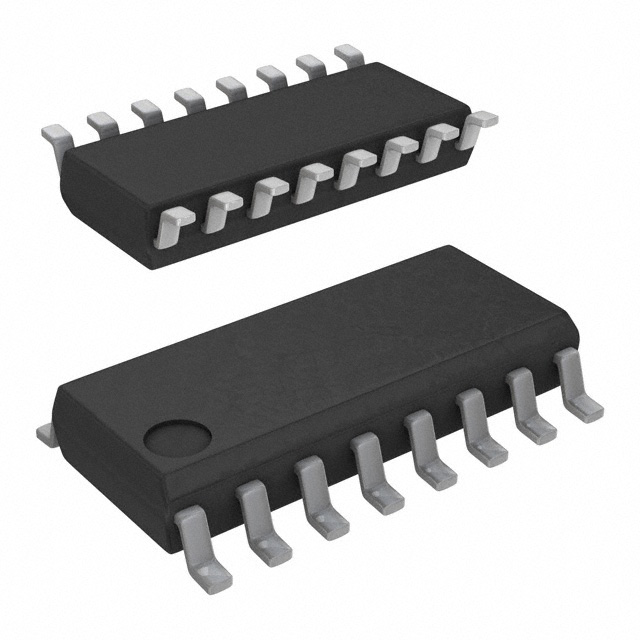

C8051F823-GSR
IC MCU 8BIT 8KB FLASH 16SOIC
C8051F829-GSR
IC MCU 8BIT 8KB FLASH 16SOIC

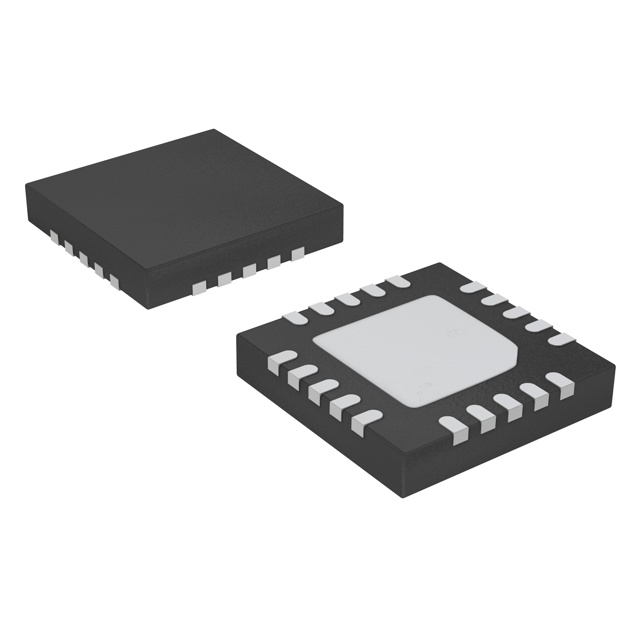

C8051F820-GM
