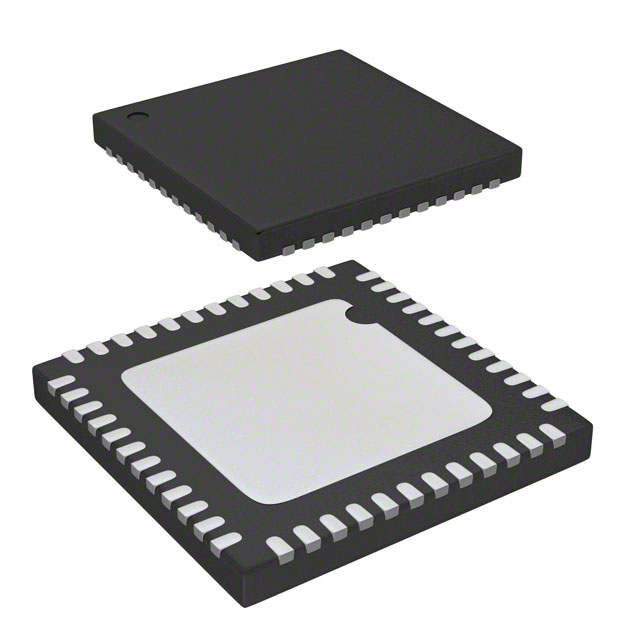

C8051F705-GM
IC MCU 8BIT 15KB FLASH 48QFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs 8051 microcontroller, part of the C8051F70x series, features an 8-bit core operating at 25MHz. This device offers 15KB of FLASH program memory and 512 bytes of RAM, complemented by 32 bytes of EEPROM. Connectivity options include SMBus (2-Wire/I2C), SPI, and UART/USART. Integrated peripherals include capacitance sensing, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The C8051F705-GM is supplied in a 48-QFN (7x7) surface-mount package, operating with a supply voltage range of 1.8V to 3.6V and an ambient temperature range of -40°C to 85°C. This component finds application in consumer electronics and industrial control systems.
Additional Information
Series: C8051F70xRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 15KB (15K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 32 x 8 |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | SMBus (2-Wire/I2C), SPI, UART/USART |
| Peripherals | Cap Sense, POR, PWM, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 39 |
| Programmable | Not Verified |
