C8051F562-IQR
IC MCU 8BIT 32KB FLASH 32LQFPManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F56x series 8-bit microcontroller, part number C8051F562-IQR. This device features an 8051 core operating at 50MHz, with 32KB of FLASH program memory and 2.25KB of RAM. Connectivity options include SMBus (2-Wire/I2C), LINbus, SPI, and UART/USART. It is equipped with 25 general-purpose I/O pins and a 12-bit Analog-to-Digital converter with 25 channels. Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), a temperature sensor, and a Watchdog Timer (WDT). The operating voltage range is 1.8V to 5.25V, and it operates within an ambient temperature range of -40°C to 125°C. The component is supplied in a 32-LQFP (7x7) package, available on tape and reel. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: C8051F56xRoHS Status: RoHS CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | A/D 25x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.25V |
| Connectivity | SMBus (2-Wire/I2C), LINbus, SPI, UART/USART |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 32-LQFP (7x7) |
| Number of I/O | 25 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

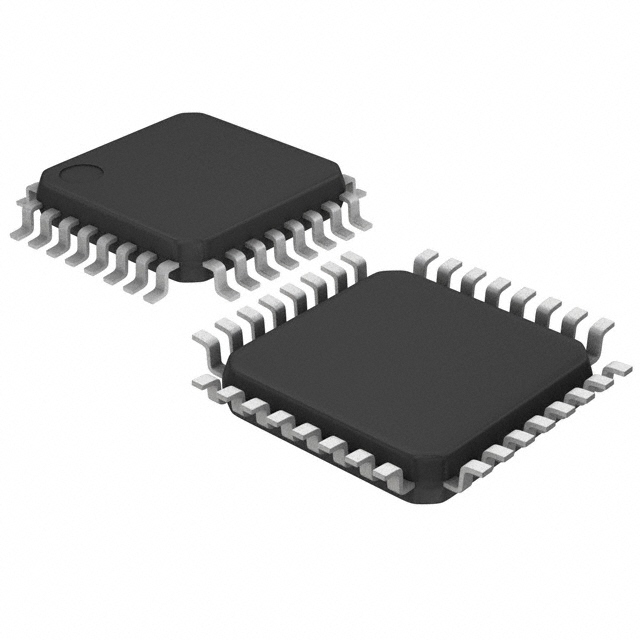

C8051F560-IQ
