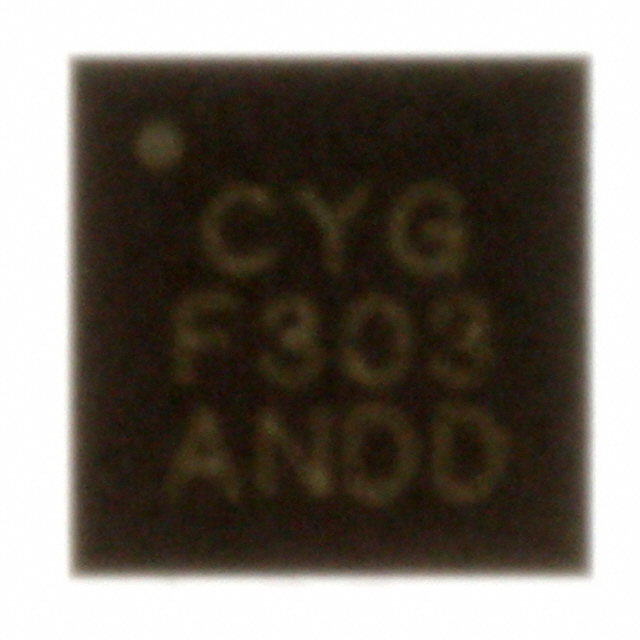

C8051F303-GMR
IC MCU 8BIT 8KB FLASH 11QFNManufacturer: Silicon Labs
Categories: Microcontrollers
Quality Control: Learn More
Silicon Labs C8051F303-GMR is an 8-bit microcontroller from the C8051F30x series. This device features an 8051 core running at 25MHz, equipped with 8KB of FLASH program memory and 256 bytes of RAM. Connectivity options include SMBus (2-Wire/I2C) and UART/USART interfaces. On-chip peripherals consist of Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The microcontroller offers 8 general-purpose I/O pins. It operates from a 2.7V to 3.6V supply and has an operating temperature range of -40°C to 85°C. The device is provided in an 11-QFN (3x3) surface mount package on tape and reel. Applications for this component are found in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: C8051F30xRoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | SMBus (2-Wire/I2C), UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 11-QFN (3x3) |
| Number of I/O | 8 |
| Programmable | Verified |
Request a Quote
Clients Also Buy

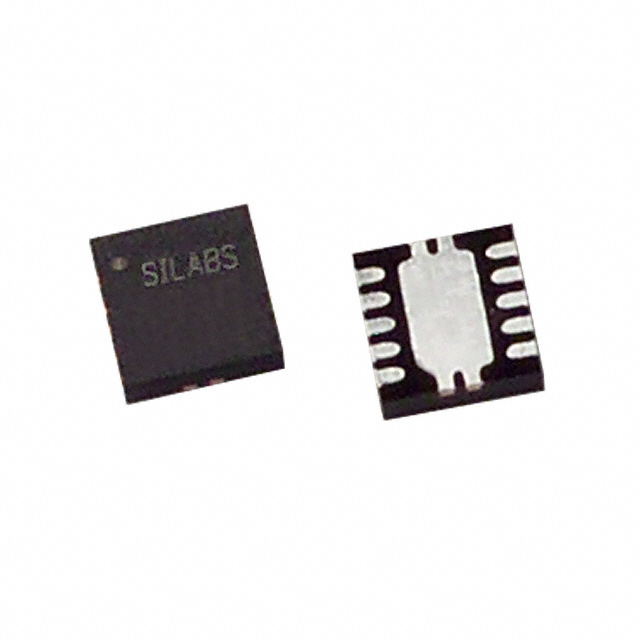

C8051F301-GMR
