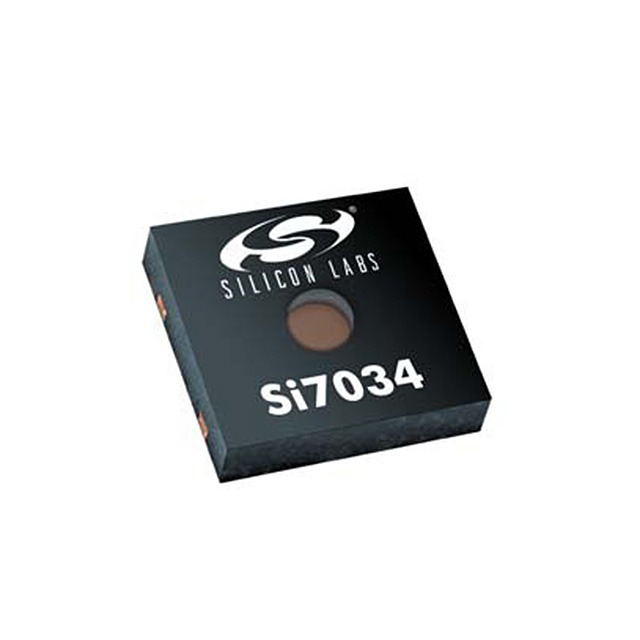

SI7034-A10-IM
SENS HUMI/TEMP 1.8V I2C 3% 6QFNManufacturer: Silicon Labs
Categories: Humidity, Moisture Sensors
Quality Control: Learn More
Silicon Labs SI7034-A10-IM is a highly integrated humidity and temperature sensor designed for demanding applications. This device offers ±3% RH accuracy across a 0 to 100% RH range, with a typical response time of 18 seconds. Operating from a 1.8V supply, it communicates via the I2C interface, providing 11-bit resolution for both humidity and temperature measurements. The sensor is housed in a compact 6-QFN (2x2) surface-mount package, suitable for space-constrained designs. Its robust operating temperature range of -40°C to 125°C makes it ideal for use in industrial, automotive, and HVAC systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-WQFN |
| Output Type | I2C |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Output | 11b |
| Accuracy | ±3% RH |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.8V |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | 6-QFN (2x2) |
| Response Time | 18 s |
