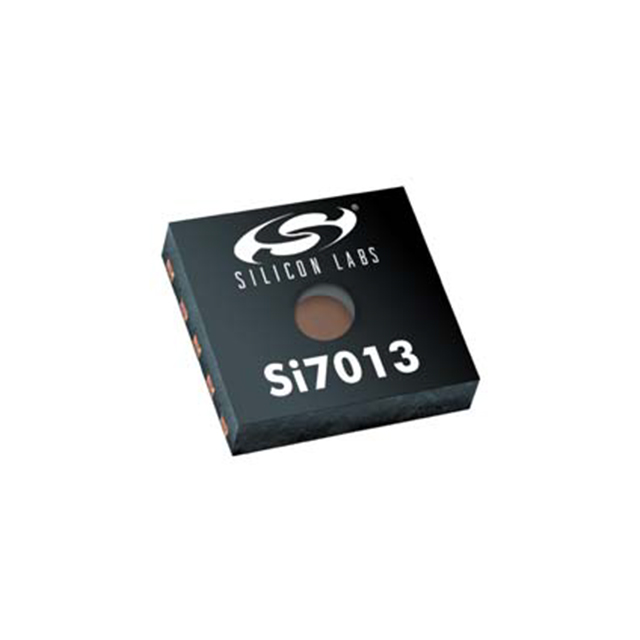

SI7013-A20-GM1R
SENSOR HUMID/TMP 3.6V I2C 3% QFNManufacturer: Silicon Labs
Categories: Humidity, Moisture Sensors
Quality Control: Learn More
The Silicon Labs SI7013-A20-GM1R is a digital humidity and temperature sensor designed for high-volume applications. This component provides calibrated, linearized outputs for relative humidity and temperature via an I2C interface, supporting 12-bit resolution. The humidity sensor offers a ±3% RH accuracy across its full 0-100% RH operating range. Its response time is rated at 18 seconds. The device operates from a 1.9V to 3.6V supply voltage and features a compact 10-DFN (3x3) package with an exposed pad for efficient thermal management. This sensor is widely utilized in HVAC systems, weather stations, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | I2C |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Output | 12b |
| Accuracy | ±3% RH |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.9V ~ 3.6V |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | 10-DFN (3x3) |
| Response Time | 18 s |
Request a Quote
Clients Also Buy
SI7006-A20-IMR
SENS HUMID/TEMP 3.6V I2C 5% 6DFN

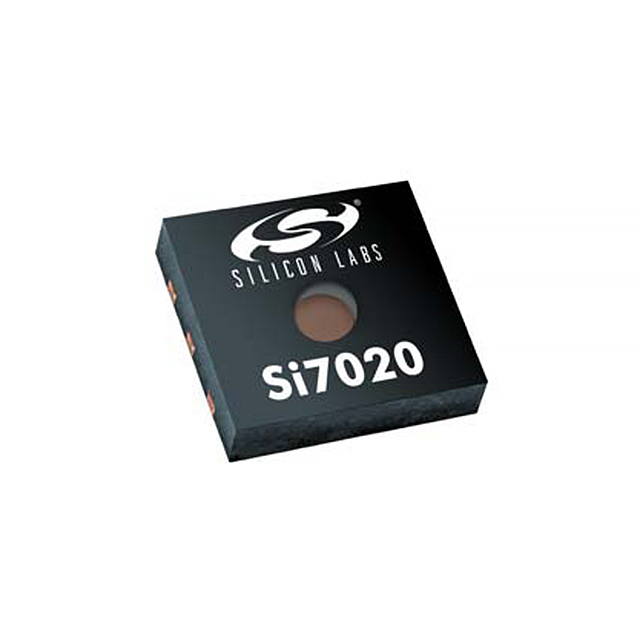

SI7020-A20-IMR
SENS HUMID/TEMP 3.6V I2C 4% 6DFN

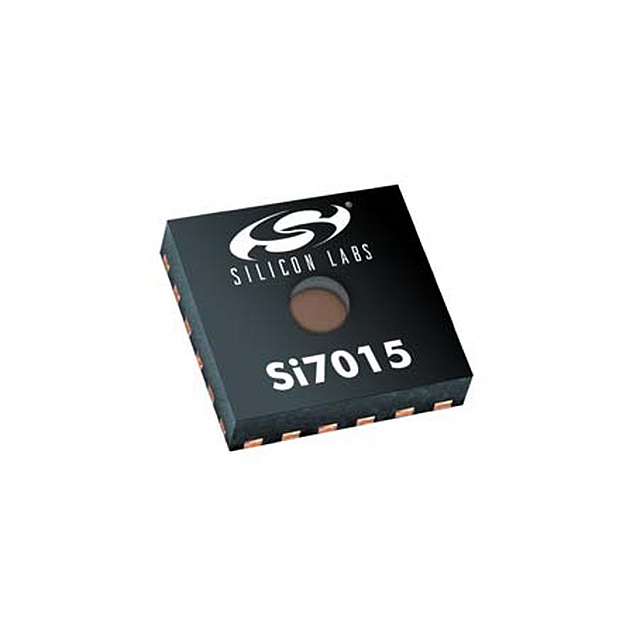

SI7015-A20-FM
