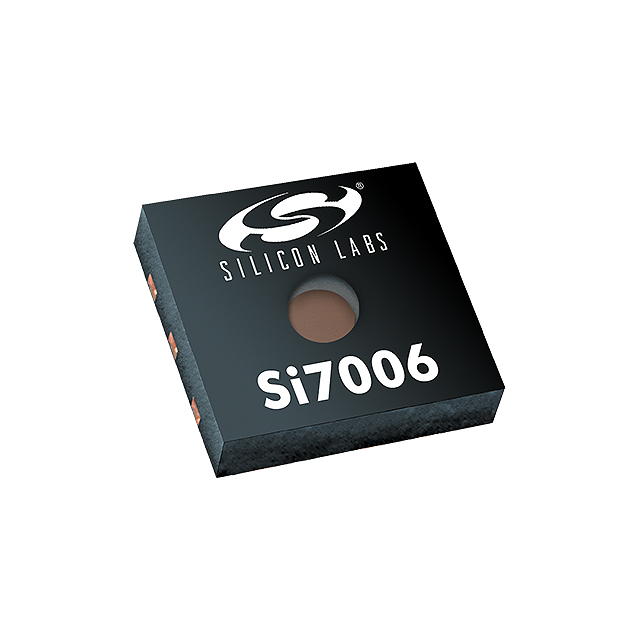

SI7006-A10-IM
SENS HUMI/TEMP 3.6V I2C 5% 6DFNManufacturer: Silicon Labs
Categories: Humidity, Moisture Sensors
Quality Control: Learn More
The Silicon Labs SI7006-A10-IM is a digital humidity and temperature sensor with I2C output. This component offers a wide humidity measurement range of 0 to 100% RH with an accuracy of ±5% RH. The integrated temperature sensor operates across a broad temperature spectrum from -40°C to 125°C. Leveraging a 12-bit output resolution, the SI7006-A10-IM provides precise environmental data. Its 6-DFN (3x3) exposed pad package and surface mount design facilitate efficient integration into compact PCBs. The device supports a supply voltage range of 1.9V to 3.6V and exhibits a response time of 18 seconds. This sensor is commonly employed in HVAC systems, weather stations, and industrial automation applications requiring accurate environmental monitoring.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | I2C |
| Sensitivity | - |
| Mounting Type | Surface Mount |
| Output | 12b |
| Accuracy | ±5% RH |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.9V ~ 3.6V |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Supplier Device Package | 6-DFN (3x3) |
| Response Time | 18 s |
