2240-400
1-Axis 400g DC Accel HermeticManufacturer: Silicon Designs
Categories: Accelerometers
Quality Control: Learn More

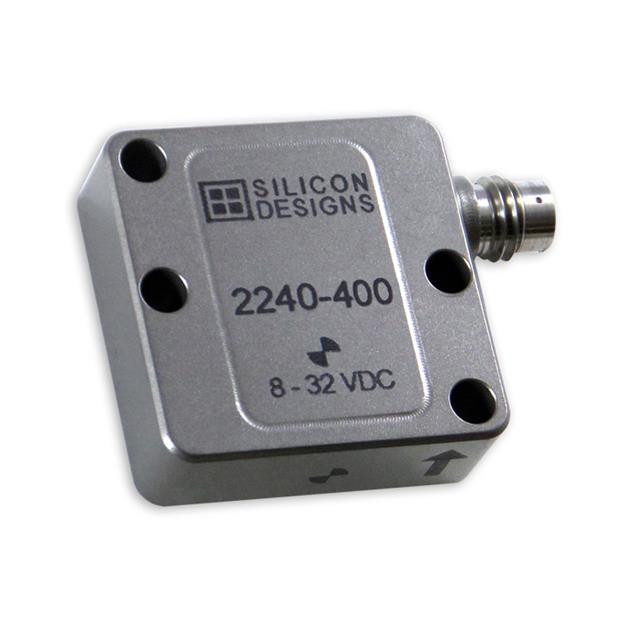

Silicon Designs 2240-400 is a high-performance, single-axis accelerometer designed for demanding applications. This hermetically sealed module features an acceleration range of ±400g and a bandwidth extending from DC to 4.2kHz, ensuring accurate measurement across a broad spectrum of dynamic inputs. With a sensitivity of 10mV/g, it provides precise analog voltage output. The 2240-400 operates within a wide temperature range of -55°C to 125°C and is powered by a supply voltage from 8V to 32V. Its robust construction and screw-mount design make it suitable for shock and vibration monitoring in industries such as aerospace, defense, and industrial automation.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Analog Voltage |
| Mounting Type | Screw Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±400g |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 8V ~ 32V |
| Bandwidth | 0Hz ~ 4.2kHz |
| Supplier Device Package | Module |
| Sensitivity (mV/g) | 10 |
