2240-100
1-Axis 100g DC Accel HermeticManufacturer: Silicon Designs
Categories: Accelerometers
Quality Control: Learn More

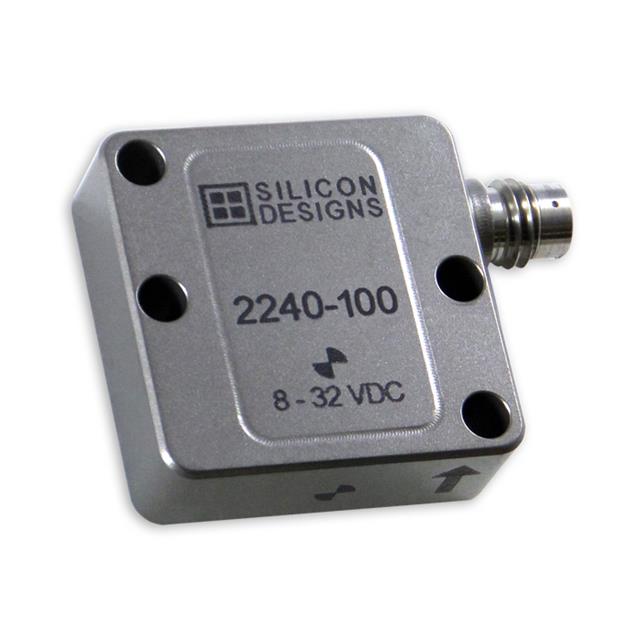

Silicon Designs 2240-100 is a hermetically sealed, single-axis accelerometer designed for high-precision motion sensing. This analog voltage output module offers a ±100g acceleration range with a DC to 3kHz bandwidth, making it suitable for demanding applications. Featuring a sensitivity of 40 mV/g and a wide operating temperature range of -55°C to 125°C, the 2240-100 ensures reliable performance across various environmental conditions. Its robust design and screw mount capability facilitate secure integration into test and measurement systems, industrial automation, and aerospace and defense platforms. Power is supplied via an 8V to 32V range.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Analog Voltage |
| Mounting Type | Screw Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±100g |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 8V ~ 32V |
| Bandwidth | 0Hz ~ 3kHz |
| Supplier Device Package | Module |
| Sensitivity (mV/g) | 40 |
