SPH4018H100MT
FIXED IND 10UH 1.2A 180MOHM SMDManufacturer: Shenzhen Sunlord Electronics Co., Ltd.
Categories: Fixed Inductors
Quality Control: Learn More
10 µH Shielded Drum Core, Wirewound Inductor 1.2 A 180mOhm Max Nonstandard
Additional Information
Series: SPHRoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157"" L x 0.157"" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 1.3A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.071"" (1.80mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 1.2 A |
Request a Quote
Clients Also Buy
SWPA4026S1R0NT
FIXED IND 1UH 3A 31 MOHM SMD

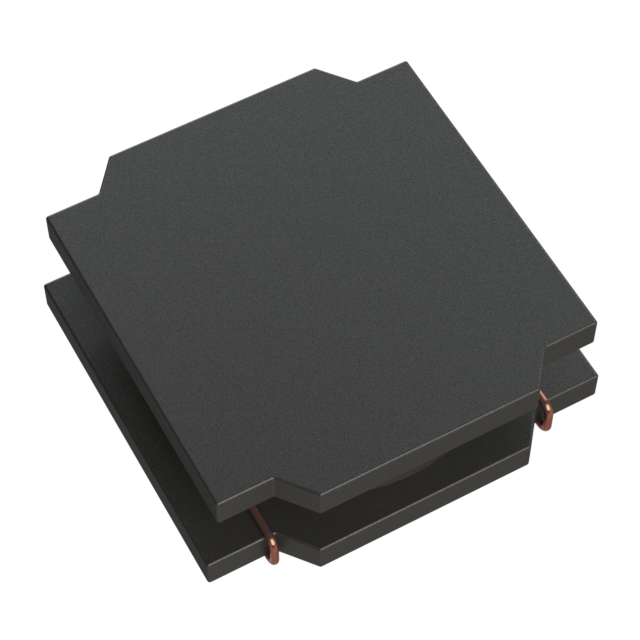

SWPA4030S4R7MT
FIXED IND 4.7UH 2A 78 MOHM SMD

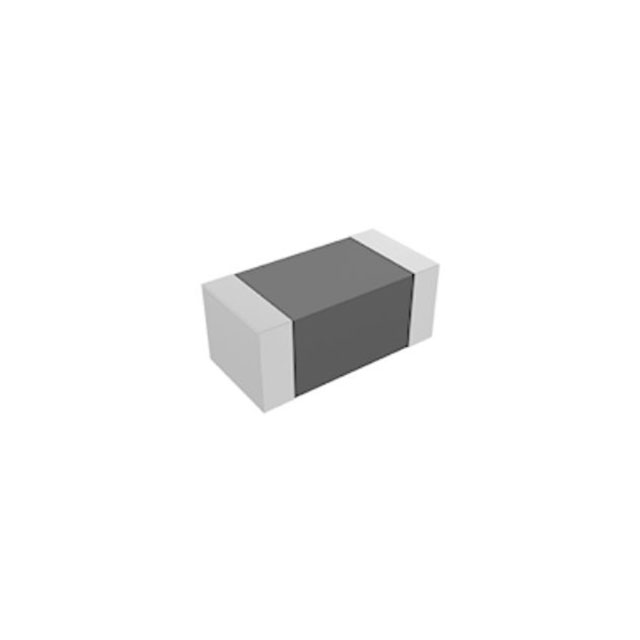

PZ1608U121-2R0TF
