GP2Y1030AU0F
DUST SENSOR UNITManufacturer: SHARP/Socle Technology
Categories: Particle, Dust Sensors
Quality Control: Learn More
SHARP/Socle Technology GP2Y1030AU0F is a dust sensor module designed for detecting airborne particulate matter. This optical sensor unit utilizes a single pass-through design for efficient measurement. Operating within a voltage supply range of 4.75V to 5.25V, the GP2Y1030AU0F features a maximum DC forward current of 35 mA. Its output is a voltage signal, with a sensitivity rated at 1V/(0.1mg/m3). The operating temperature range for this module is -10°C to 65°C, and it is suitable for chassis mounting. This component is commonly employed in air quality monitoring systems and HVAC applications. The GP2Y1030AU0F is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Output Type | Voltage |
| Sensitivity | 1V/(0.1mg/m3) |
| Mounting Type | Chassis Mount |
| Type | - |
| Operating Temperature | -10°C ~ 65°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - DC Forward (If) (Max) | 35 mA |
Request a Quote
Clients Also Buy
GP2Y1023AU0F
MOD DUST SENSOR 5PIN QFN

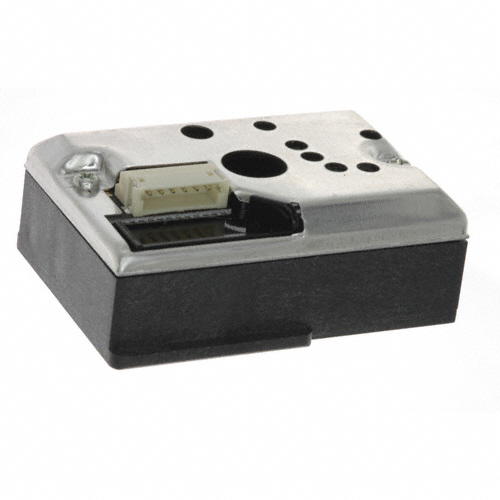

GP2Y1010AU0F
