GP1S95
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: Sharp Microelectronics
Categories: Transistor Output
Quality Control: Learn More

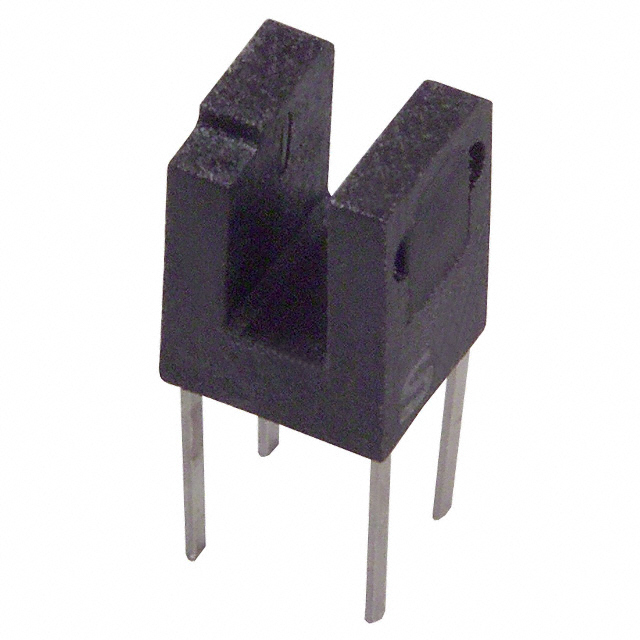

Sharp Microelectronics GP1S95 is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting with a sensing distance of 0.063 inches (1.6mm). Key electrical specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA. The collector emitter breakdown voltage (Vce) is rated at a maximum of 35 V. The sensor offers response times of 35µs for both turn-on and turn-off. Operating temperature range is from -25°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics where precise object detection is required. It is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.063"" (1.6mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 35µs, 35µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 50 mA |
